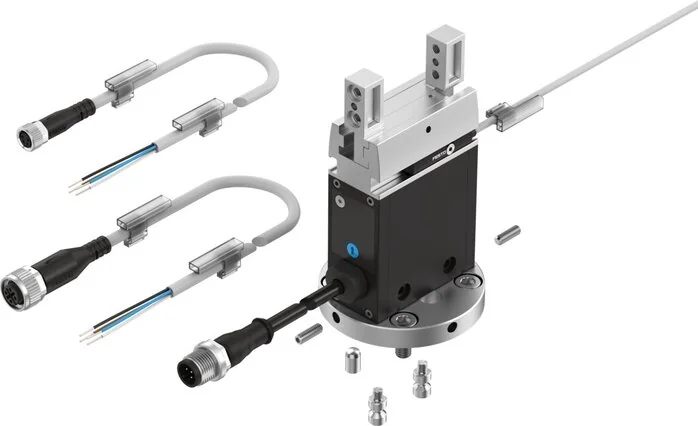

Festo - EHPS-20-A-RA50-8210809 - Robot Kit Parallel Gripper

SKU: festo-ehps-20-a-ra50-8210809

Browse all parts
Festo - EHPS-20-A-RA50-8210809 - Robot Kit Parallel Gripper

€3,194.80€2,730.60 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,194.80

Brand
Festo
Size
20
Guide
sliding guide
KC-mark
KC-EMV
Motor Type
DC servomotor
Permission
RCM mark
Drive System
Electrical
Mass Inertia
2,05
Material Note
RoHs compliant
Supply Volume
2x Verbindungsleitung
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
Parallel
Housing Material
Anodised aluminium
Operating Element
Rastschalter
Position Detection
For proximity switch
Construction Set Up
elektrischer Greifer
Protection Category
IP40
Complies To Standard
IEC 61010-1
Max. Power Input (A)
2000
Electrical Connection
M12x1
Gripper Jaws Material
High-alloyed stainless steels
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-Zone III
Rotational Symmetry (mm)
0,2
Total Gripping Force (N)
218
Ambient Temperature (°C)
5 to 60
Max. Cycle Frequency (Hz)
0,7
Operation-readiness Display
LED
Repeatability Grippers (mm)
0,01
Stroke Per Gripper Jaw (mm)
13
Max. Exchange Precision (mm)
0,2
Sound Pressure Level (dB(A))
70
Max. Gripper Jaw Play Sz (mm)
0,05
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Nominal Operating Voltage DC (V)
24
Lubrication Interval Guide Elements
2
Max. Force On Gripper Jaws Fz Static (N)
325
Max. Mass Per External Griper Finger (g)
150
Max. Torque On Gripper Jaws Mx Static (Nm)
13
Max. Torque On Gripper Jaws My Static (Nm)
8,0
Max. Torque On Gripper Jaws Mz Static (Nm)
13
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,3
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568785031
Manufacturer
Festo
