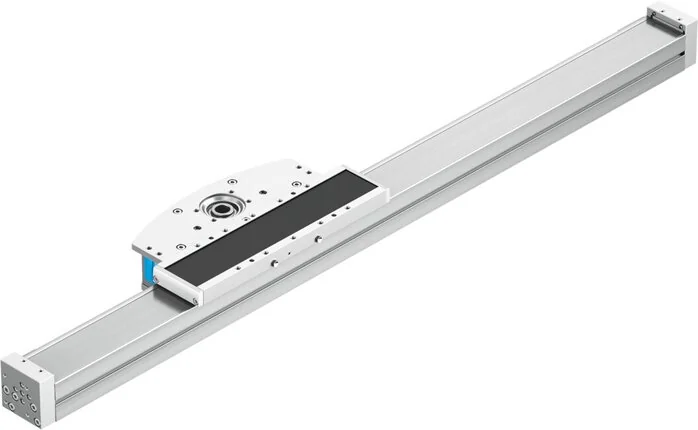

Festo - ELCC-TB-KF-60-200-0H-P0-CR-8082386 - Boom Axle

SKU: festo-elcc-tb-kf-60-200-0h-p0-cr-8082386

Browse all parts
Festo - ELCC-TB-KF-60-200-0H-P0-CR-8082386 - Boom Axle

€2,855.58€2,440.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,855.58

Brand
Festo
Size
60
Guide
ball guide
Feed Constant
96
Material Note
RoHs compliant
Mass Inertia JO
5,9
V-belt Material
Polychloroprene with glas cord and nylon covering
Housing Material
High-alloyed stainless steels
Max. Speed (m/s)
5
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium-Guss, eloxiert
Max. Acceleration
50
Max. Force Fy (N)
4216
Max. Force Fz (N)
4119
Repeatability (mm)
±0.05
Construction Set Up
Elektromechanische Auslegerachse
Max. Torque Mx (Nm)
36
Max. Torque My (Nm)
293
Max. Torque Mz (Nm)
288
Protection Category
IP20
Stroke Reserve (mm)
0
Working Stroke (mm)
200
Installation Position
arbitrary
Actuator Head Material
Aluminium-Knetlegierung, eloxiert
Closing Cover Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
300
V-belt Separation (mm)
3
Guide Carriage Material
Wälzlagerstahl, Corrotect beschichtet
Second Moment Of Area Iy
240.600
Second Moment Of Area Iz
304.210
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
5,2
Reference Service Life (km)
5000
V-belt Clamping Body Material
Aluminium-Knetlegierung, eloxiert
Base Weight At 0 mm Stroke (g)
4146
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
1636
Mass Inertia JH Per Metre Stroke
8,9
Mass Inertia JL Per kg Usable Load
2,3
Weight Supplement Per 10 mm Stroke (g)
38
Actuator Pinion Effective Diameter (mm)
30,558
Supplement Moved Mass Per 10 mm Stroke (g)
38
Lubrication Interval Running Section Depending (km)
1.000
EAN
4052568447786
Manufacturer
Festo
