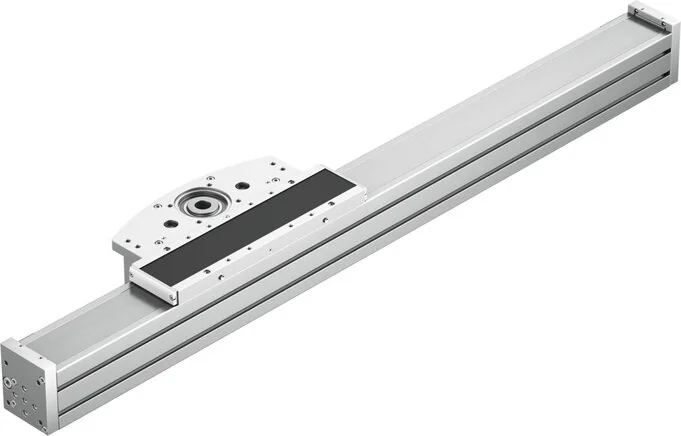

Festo - ELCC-TB-KF-90-800-0H-P0-CR-8082403 - Boom Axle

SKU: festo-elcc-tb-kf-90-800-0h-p0-cr-8082403

Browse all parts
Festo - ELCC-TB-KF-90-800-0H-P0-CR-8082403 - Boom Axle

€4,751.11€4,060.78 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,751.11

Brand
Festo
Size
90
Guide
ball guide
Feed Constant
160
Material Note
RoHs compliant
Mass Inertia JO
55,2
V-belt Material
Polychloroprene with glas cord and nylon covering
Housing Material
High-alloyed stainless steels
Max. Speed (m/s)
5
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium-Guss, eloxiert
Max. Acceleration
30
Max. Force Fy (N)
13957
Max. Force Fz (N)
13523
Repeatability (mm)
±0.05
Construction Set Up
Elektromechanische Auslegerachse
Max. Torque Mx (Nm)
167
Max. Torque My (Nm)
1300
Max. Torque Mz (Nm)
1233
Protection Category
IP20
Stroke Reserve (mm)
0
Working Stroke (mm)
800
Installation Position
arbitrary
Actuator Head Material
Aluminium-Knetlegierung, eloxiert
Closing Cover Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
1200
V-belt Separation (mm)
5
Guide Carriage Material
Wälzlagerstahl, Corrotect beschichtet
Second Moment Of Area Iy
2.667.900
Second Moment Of Area Iz
2.049.490
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
33
Reference Service Life (km)
5000
V-belt Clamping Body Material
Aluminium-Knetlegierung, eloxiert
Base Weight At 0 mm Stroke (g)
14787
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
5487
Mass Inertia JH Per Metre Stroke
62,9
Mass Inertia JL Per kg Usable Load
6,5
Weight Supplement Per 10 mm Stroke (g)
97
Actuator Pinion Effective Diameter (mm)
50,930
Supplement Moved Mass Per 10 mm Stroke (g)
97
Lubrication Interval Running Section Depending (km)
1.000
EAN
4052568447953
Manufacturer
Festo
