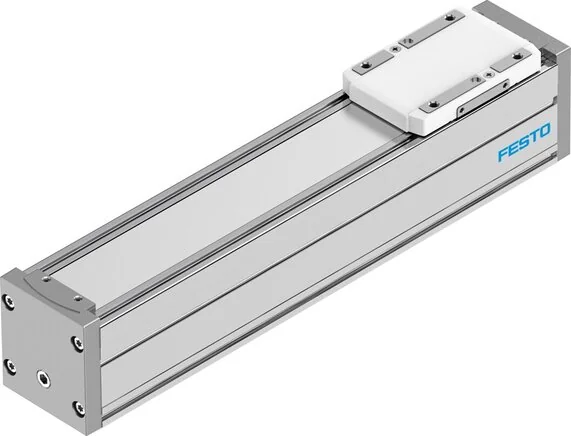

Festo - ELFC-KF-60-200-8062813 - Guide Axis

SKU: festo-elfc-kf-60-200-8062813

Browse all parts
Festo - ELFC-KF-60-200-8062813 - Guide Axis

€511.16€436.89 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€511.16

Brand
Festo
Size
60
Guide
ball guide
Material Note
RoHs compliant
Power-on Time
100%
Moving Mass (g)
407
Max. Speed (m/s)
1,5
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium die casting
Max. Acceleration
15
Max. Force Fy (N)
3641
Max. Force Fz (N)
3641
Pushing Force (N)
6,75
Position Detection
For inductive sensors
Construction Set Up
Guide
Max. Torque Mx (Nm)
29,1
Max. Torque My (Nm)
31,8
Max. Torque Mz (Nm)
31,8
Protection Category
IP40
Working Stroke (mm)
200
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Guide Carriage Material
Steel
Second Moment Of Area Iy
441.000
Second Moment Of Area Iz
542.000
Ambient Temperature (°C)
0 to 50
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
600
Max. Force Fz Total Axis (N)
1800
Base Weight At 0 mm Stroke (g)
1029
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Moment Mx Total Axis (Nm)
29,1
Max. Moment My Total Axis (Nm)
31,8
Max. Moment Mz Total Axis (Nm)
31,8
Torsional Moment Of Inertia To
29.800
Static Bending (Load At Standstill)
0.1 % of the axis length
Weight Supplement Per 10 mm Stroke (g)
43
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
13400
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
13400
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
107
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
117
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
117
EAN
4052568296421
Manufacturer
Festo
