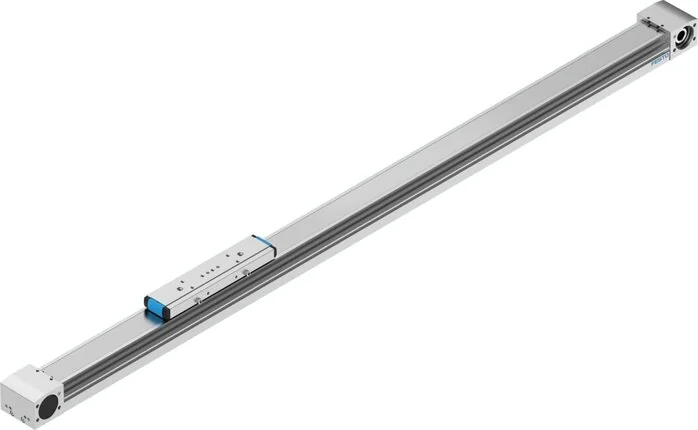

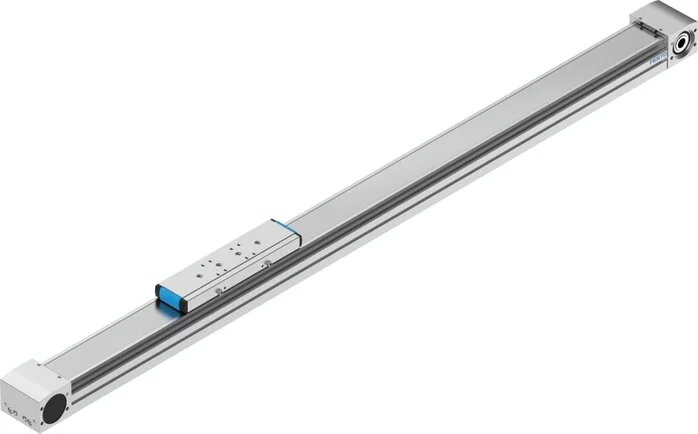

Festo - ELGA-TB-KF-70-1000-0H-8041856 - Toothed Belt Axis

SKU: festo-elga-tb-kf-70-1000-0h-8041856

Festo - ELGA-TB-KF-70-1000-0H-8041856 - Toothed Belt Axis

€2,743.81€2,345.14 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,743.81

Brand
Festo
Size
70
Guide
ball guide
Motor Type
Servo motor
Feed Constant
90
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
2,43
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
5
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
1500
Max. Force Fz (N)
1850
Repeatability (mm)
±0.08
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
16
Max. Torque My (Nm)
132
Max. Torque Mz (Nm)
132
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
1000
Belt Pulley Material
High-alloyed stainless steels
Carriage Weight (kg)
900
Installation Position
arbitrary
Masking Tape Material
Rust-free stainless steel band
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
350
V-belt Separation (mm)
3
Actuator Cover Material
eloxiert
Guide Carriage Material
Stainless steel
Second Moment Of Area Iy
146.050
Second Moment Of Area Iz
459.290
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
5,02
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
1500
Max. Force Fz Total Axis (N)
1850
V-belt Clamping Body Material
Cast stainless steel
Empty Run Actuator Torque (Nm)
0,6
Max. Moment Mx Total Axis (Nm)
16
Max. Moment My Total Axis (Nm)
132
Max. Moment Mz Total Axis (Nm)
132
Torsional Moment Of Inertia To
103.880
Additional Carriage Weight (kg)
740
Base Weight At 0 mm Stroke (kg)
2970
Mass Inertia JH Per Metre Stroke
0,19
Mass Inertia JL Per kg Usable Load
2,05
Max. Empty Run Shift Resistance (N)
41,9
Static Bending (Load At Standstill)
0.1 % of the axis length
Actuator Pinion Effective Diameter (mm)
28,65
Weight Supplement Per 10 mm Stroke (kg)
39
Mass Inertia JW For Additional Carriages
1,86
Measurement Principle Travel Measurement System
Incremental
Distance Between Slide Surface And Guide Centre (mm)
37
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
5520
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
6808
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
59
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
486
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
486
EAN
4052568286569
Manufacturer
Festo
