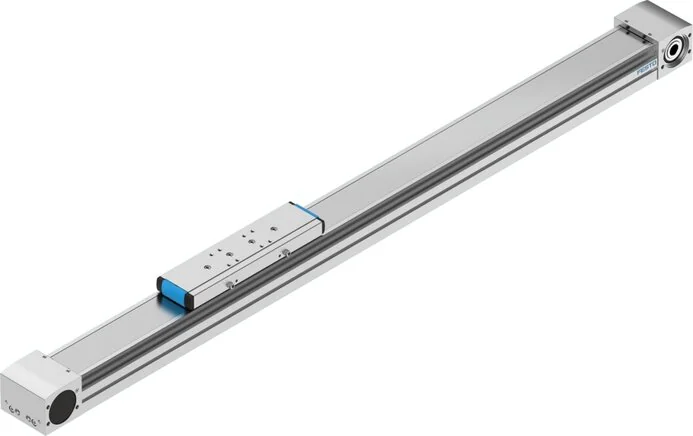

Festo - ELGA-TB-KF-80-800-0H-8041861 - Toothed Belt Axis

SKU: festo-elga-tb-kf-80-800-0h-8041861

Festo - ELGA-TB-KF-80-800-0H-8041861 - Toothed Belt Axis

€2,949.16€2,520.65 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,949.16

Brand
Festo
Size
80
Guide
ball guide
Motor Type
Servo motor
Feed Constant
125
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
9,82
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
5
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
2500
Max. Force Fz (N)
3050
Repeatability (mm)
±0.08
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
36
Max. Torque My (Nm)
228
Max. Torque Mz (Nm)
228
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
800
Belt Pulley Material
High-alloyed stainless steels
Carriage Weight (kg)
1.900
Installation Position
arbitrary
Masking Tape Material
Rust-free stainless steel band
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
800
V-belt Separation (mm)
5
Actuator Cover Material
eloxiert
Guide Carriage Material
Stainless steel
Second Moment Of Area Iy
257.180
Second Moment Of Area Iz
913.660
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
15,92
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
2500
Max. Force Fz Total Axis (N)
3050
V-belt Clamping Body Material
Cast stainless steel
Empty Run Actuator Torque (Nm)
1
Max. Moment Mx Total Axis (Nm)
36
Max. Moment My Total Axis (Nm)
228
Max. Moment Mz Total Axis (Nm)
228
Torsional Moment Of Inertia To
159.250
Additional Carriage Weight (kg)
1.530
Base Weight At 0 mm Stroke (kg)
4700
Mass Inertia JH Per Metre Stroke
0,93
Mass Inertia JL Per kg Usable Load
3,96
Max. Empty Run Shift Resistance (N)
50,3
Static Bending (Load At Standstill)
0.1 % of the axis length
Actuator Pinion Effective Diameter (mm)
39,79
Weight Supplement Per 10 mm Stroke (kg)
51
Mass Inertia JW For Additional Carriages
7,61
Measurement Principle Travel Measurement System
Incremental
Distance Between Slide Surface And Guide Centre (mm)
50
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
9200
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
11224
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
132
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
839
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
839
EAN
4052568286613
Manufacturer
Festo
