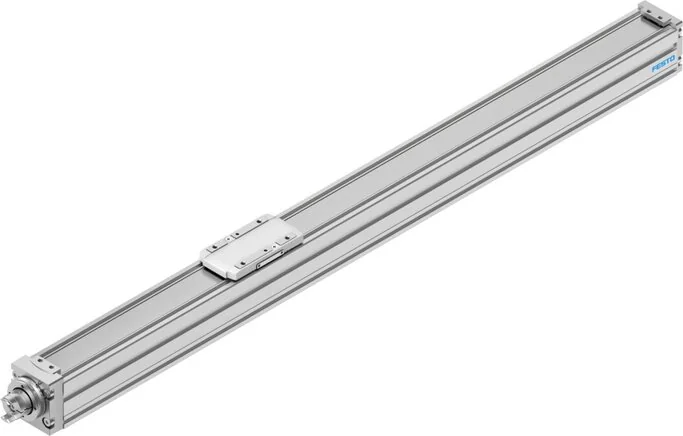

Festo - ELGC-BS-KF-32-500-8P-8061481 - Spindle Axis

SKU: festo-elgc-bs-kf-32-500-8p-8061481

Festo - ELGC-BS-KF-32-500-8P-8061481 - Spindle Axis

€1,075.73€919.43 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,075.73

Brand
Festo
Size
32
Guide
ball guide
Max. Speed
4500
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
8
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
8
Mass Inertia JO
0,00274
Moving Mass (g)
83,4
Max. Speed (m/s)
0,6
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium die casting
Max. Acceleration
15
Max. Force Fy (N)
356
Max. Force Fz (N)
356
Position Detection
For inductive sensors
Repeatability (mm)
±0.015
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
1,3
Max. Torque My (Nm)
1,1
Max. Torque Mz (Nm)
1,1
Protection Category
IP40
Reversing Play (mm)
150
Stroke Reserve (mm)
0
Working Stroke (mm)
500
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Spindle Diameter (mm)
8
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
40
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
V25
Second Moment Of Area Iy
38.000
Second Moment Of Area Iz
45.000
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
60
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
150
Max. Force Fz Total Axis (N)
300
Max. Moment Mx Total Axis (Nm)
1,3
Max. Moment My Total Axis (Nm)
1,1
Max. Moment Mz Total Axis (Nm)
1,1
Torsional Moment Of Inertia To
1.700
Mass Inertia JH Per Metre Stroke
0,02218
Impact Energy At The End Positions
0,00025
Mass Inertia JL Per kg Usable Load
0,016211
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
75
Weight Supplement Per 10 mm Stroke (g)
18
Empty Run Torque At Maximum Movement Speed (Nm)
0,04
Empty Run Torque At Minimum Movement Speed (Nm)
0,02
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
31,4
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
1310
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
1310
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
5
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
4
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
4
EAN
4052568295707
Manufacturer
Festo
