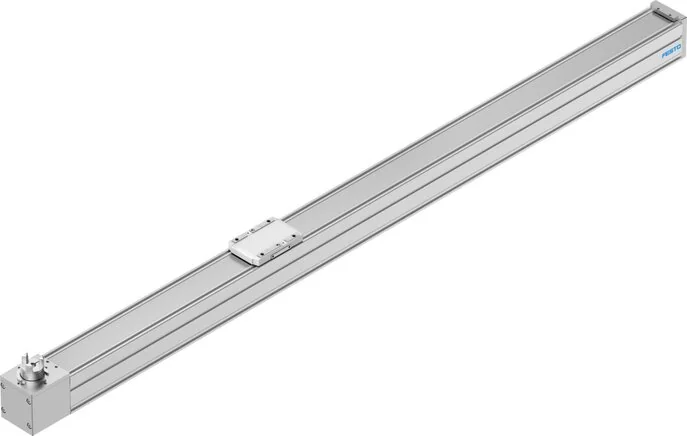

Festo - ELGC-TB-KF-60-1500-8062783 - Toothed Belt Axis

SKU: festo-elgc-tb-kf-60-1500-8062783

Festo - ELGC-TB-KF-60-1500-8062783 - Toothed Belt Axis

€1,160.21€991.63 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,160.21

Brand
Festo
Size
60
Guide
ball guide
Motor Type
Servo motor
Feed Constant
78
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
0,8804
Moving Mass (g)
482
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
1,5
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium die casting
Max. Acceleration
15
Max. Force Fy (N)
3641
Max. Force Fz (N)
3641
Position Detection
For inductive sensors
Repeatability (mm)
±0.1
Carriage Weight (g)
139
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
29,1
Max. Torque My (Nm)
31,8
Max. Torque Mz (Nm)
31,8
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
1500
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
Rust-free stainless steel band
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
120
V-belt Separation (mm)
3
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T42
Second Moment Of Area Iy
441.000
Second Moment Of Area Iz
542.000
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
60
Max. Actuator Torque (Nm)
1,49
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
600
Max. Force Fz Total Axis (N)
1800
Base Weight At 0 mm Stroke (g)
1775
Empty Run Actuator Torque (Nm)
0,194
Max. Moment Mx Total Axis (Nm)
29,1
Max. Moment My Total Axis (Nm)
31,8
Max. Moment Mz Total Axis (Nm)
31,8
Torsional Moment Of Inertia To
29.800
Mass Inertia JH Per Metre Stroke
0,0851
Impact Energy At The End Positions
0,00025
Mass Inertia JL Per kg Usable Load
1,5411
Max. Empty Run Shift Resistance (N)
15,6
Static Bending (Load At Standstill)
0.1 % of the axis length
Weight Supplement Per 10 mm Stroke (g)
43
Actuator Pinion Effective Diameter (mm)
24,83
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
54,6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
13400
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
13400
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
107
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
117
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
117
EAN
4052568296124
Manufacturer
Festo
