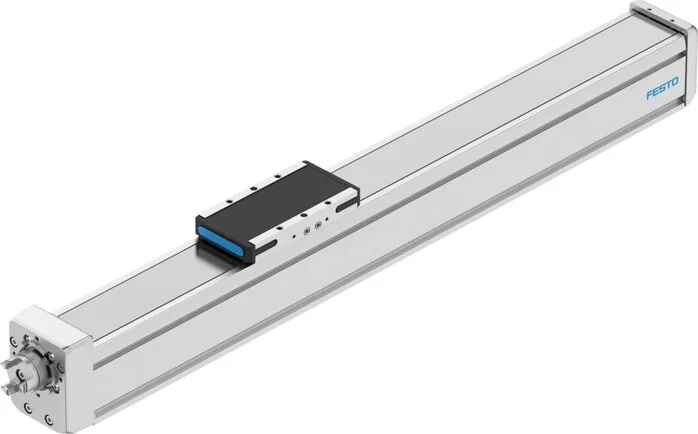

Festo - ELGD-BS-KF-60-400-0H-10P-8192263 - Spindle Axis

SKU: festo-elgd-bs-kf-60-400-0h-10p-8192263

Browse all parts
Festo - ELGD-BS-KF-60-400-0H-10P-8192263 - Spindle Axis

€1,346.33€1,150.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,346.33

Brand
Festo
Size
60
Guide
ball guide
Max. Speed
6667
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
10
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
10
Mass Inertia JO
0,0635
Moving Mass (g)
555
Max. Speed (m/s)
1,11
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium wrought alloy
Max. Acceleration
15
Max. Force Fy (N)
2200
Max. Force Fz (N)
2200
Position Detection
For inductive sensors
Repeatability (mm)
±0.01
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
37
Max. Torque My (Nm)
15
Max. Torque Mz (Nm)
15
Protection Category
IP40
Reversing Play (mm)
150
Stroke Reserve (mm)
0
Working Stroke (mm)
400
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Spindle Diameter (mm)
12
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
1550
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T42
Second Moment Of Area Iy
508.600
Second Moment Of Area Iz
685.700
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
930
Max. Force Fz Total Axis (N)
1300
Base Weight At 0 mm Stroke (g)
1774
Max. Moment Mx Total Axis (Nm)
31
Max. Moment My Total Axis (Nm)
34
Max. Moment Mz Total Axis (Nm)
26
Torsional Moment Of Inertia To
52.300
Mass Inertia JH Per Metre Stroke
0,15716
Mass Inertia JL Per kg Usable Load
0,02533
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
230
Impact Energy At The End Positions (J)
0,001
Weight Supplement Per 10 mm Stroke (g)
54
Empty Run Torque At Maximum Movement Speed (Nm)
0,14
Empty Run Torque At Minimum Movement Speed (Nm)
0,047
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
60
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
9208
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
9208
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
157
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
60
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
60
EAN
4052568644543
Manufacturer
Festo
