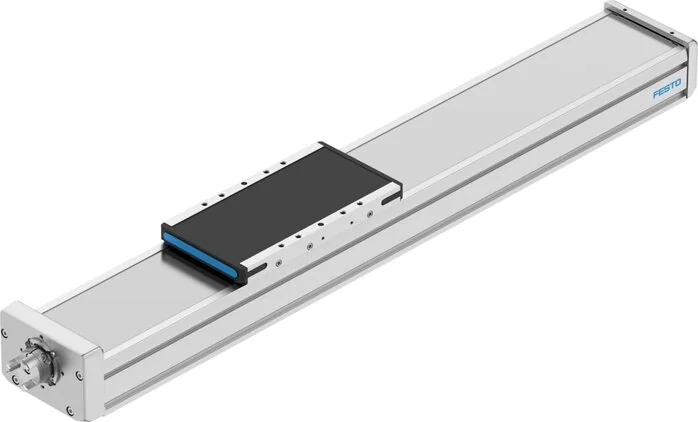

Festo - ELGD-BS-KF-WD-100-100-0H-10P-L-8192320 - Spindle Axis

€1,218.33€1,041.31 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,218.33

Brand
Festo
Size
100
Guide
ball guide
Max. Speed
8000
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
10
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
10
Mass Inertia JO
0,05632
Moving Mass (g)
1185
Max. Speed (m/s)
1,33
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium wrought alloy
Max. Acceleration
15
Max. Force Fy (N)
4400
Max. Force Fz (N)
4400
Position Detection
For inductive sensors
Repeatability (mm)
±0.01
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
140
Max. Torque My (Nm)
230
Max. Torque Mz (Nm)
220
Protection Category
IP40
Reversing Play (mm)
150
Stroke Reserve (mm)
0
Working Stroke (mm)
100
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Spindle Diameter (mm)
10
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
1100
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T42
Second Moment Of Area Iy
347.100
Second Moment Of Area Iz
2.268.000
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
4092
Max. Force Fz Total Axis (N)
2250
Base Weight At 0 mm Stroke (g)
2979
Max. Moment Mx Total Axis (Nm)
160
Max. Moment My Total Axis (Nm)
191
Max. Moment Mz Total Axis (Nm)
191
Torsional Moment Of Inertia To
108.900
Mass Inertia JH Per Metre Stroke
0,07554
Mass Inertia JL Per kg Usable Load
0,02533
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
180
Impact Energy At The End Positions (J)
0,001
Weight Supplement Per 10 mm Stroke (g)
59
Empty Run Torque At Maximum Movement Speed (Nm)
0,083
Empty Run Torque At Minimum Movement Speed (Nm)
0,026
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
47
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
18415
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
18415
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
645
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
720
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
720
EAN
4052568644826
Manufacturer
Festo
