Festo - ELGD-BS-KF-WD-120-200-0H-5P-L-8192329 - Spindle Axis

SKU: festo-elgd-bs-kf-wd-120-200-0h-5p-l-8192329

Browse all parts

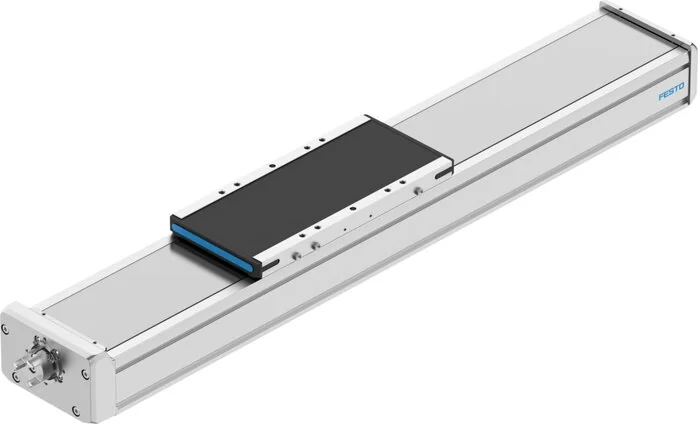

Festo - ELGD-BS-KF-WD-120-200-0H-5P-L-8192329 - Spindle Axis

€2,268.24€1,938.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,268.24

Brand
Festo
Size
120
Guide
ball guide
Max. Speed
6667
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
5
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
5
Mass Inertia JO
0,0961
Moving Mass (g)
2200
Max. Speed (m/s)
0,56
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium wrought alloy
Max. Acceleration
15
Max. Force Fy (N)
8000
Max. Force Fz (N)
7200
Position Detection
For inductive sensors
Repeatability (mm)
±0.01
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
330
Max. Torque My (Nm)
600
Max. Torque Mz (Nm)
540
Protection Category
IP40
Reversing Play (mm)
150
Stroke Reserve (mm)
0
Working Stroke (mm)
200
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Spindle Diameter (mm)
12
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
1880
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T42
Second Moment Of Area Iy
770.900
Second Moment Of Area Iz
5.801.000
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
5914
Max. Force Fz Total Axis (N)
5280
Base Weight At 0 mm Stroke (g)
5290
Max. Moment Mx Total Axis (Nm)
290
Max. Moment My Total Axis (Nm)
590
Max. Moment Mz Total Axis (Nm)
527
Torsional Moment Of Inertia To
383.100
Mass Inertia JH Per Metre Stroke
0,135
Mass Inertia JL Per kg Usable Load
0,00633
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
230
Impact Energy At The End Positions (J)
0,001
Weight Supplement Per 10 mm Stroke (g)
86
Empty Run Torque At Maximum Movement Speed (Nm)
0,179
Empty Run Torque At Minimum Movement Speed (Nm)
0,068
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
51
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
35153
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
35153
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1459
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1920
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1920
EAN
4052568775803
Manufacturer
Festo
