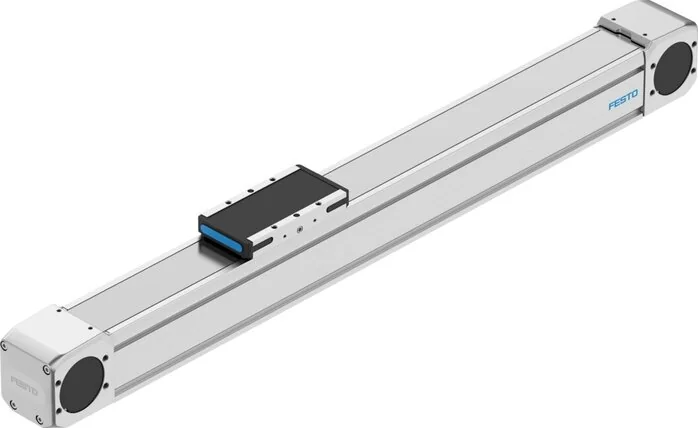

Festo - ELGD-TB-KF-60-2000-0H-PU2-8192353 - Toothed Belt Axis

SKU: festo-elgd-tb-kf-60-2000-0h-pu2-8192353

Browse all parts
Festo - ELGD-TB-KF-60-2000-0H-PU2-8192353 - Toothed Belt Axis

€1,619.27€1,383.99 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,619.27

Brand
Festo
Size
60
Guide
ball guide
Motor Type
Servo motor
Feed Constant
99
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
2,1016
Moving Mass (g)
490
V-belt Material
Polyurethan mit Stahlcord
Max. Speed (m/s)
3
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium wrought alloy
Max. Acceleration
50
Max. Force Fy (N)
2200
Max. Force Fz (N)
2200
Position Detection
For inductive sensors
Repeatability (mm)
±0,04
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
38
Max. Torque My (Nm)
15
Max. Torque Mz (Nm)
15
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
2000
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
350
V-belt Separation (mm)
3
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
N48
Second Moment Of Area Iy
485.200
Second Moment Of Area Iz
730.600
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Max. Actuator Torque (Nm)
5,5
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
1945
Max. Force Fz Total Axis (N)
2000
Base Weight At 0 mm Stroke (g)
2486
Empty Run Actuator Torque (Nm)
0,5
Max. Moment Mx Total Axis (Nm)
41
Max. Moment My Total Axis (Nm)
36
Max. Moment Mz Total Axis (Nm)
36
Torsional Moment Of Inertia To
192.900
Mass Inertia JH Per Metre Stroke
0,3128
Mass Inertia JL Per kg Usable Load
2,4822
Max. Empty Run Shift Resistance (N)
29,8
Static Bending (Load At Standstill)
0.1 % of the axis length
Impact Energy At The End Positions (J)
0,000125
Weight Supplement Per 10 mm Stroke (g)
49
Actuator Pinion Effective Diameter (mm)
31,51
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
49
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
9208
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
9208
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
157
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
60
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
60
EAN
4052568644994
Manufacturer
Festo
