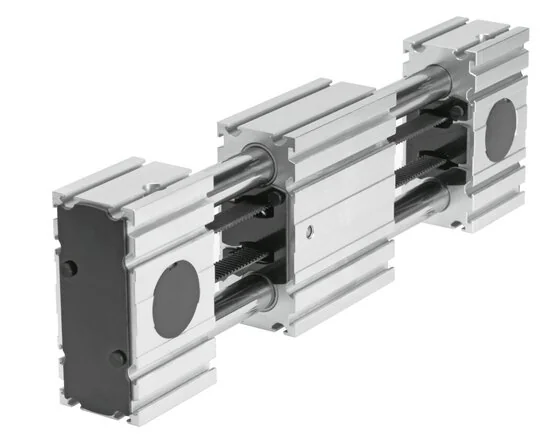

Festo - ELGR-TB-45-200-0H-8083777 - Toothed Belt Axis

SKU: festo-elgr-tb-45-200-0h-8083777

Browse all parts
Festo - ELGR-TB-45-200-0H-8083777 - Toothed Belt Axis

€730.88€624.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€730.88

Brand
Festo
Size
45
Guide
ball guide
Motor Type
Servo motor
Feed Constant
78
Material Note
RoHs compliant
Power-on Time
100%
V-belt Bending
0,080
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
1 to 3
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
100
Max. Force Fz (N)
100
Repeatability (mm)
±0.1
Construction Set Up
mit Zahnriemen
Protection Category
IP20
Working Stroke (mm)
200
Belt Pulley Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
100
V-belt Separation (mm)
3
Actuator Cover Material
eloxiert
Second Moment Of Area Iy
15.700
Second Moment Of Area Iz
17.940
Ambient Temperature (°C)
-10 to 50
Max. Actuator Torque (Nm)
1,24
Reference Service Life (km)
5000
V-belt Clamping Body Material
Beryllium bronze
Empty Run Actuator Torque (Nm)
0,2
Mass Inertia JH Per Metre Stroke
0,11
Mass Inertia JL Per kg Usable Load
1,54
Max. Empty Run Shift Resistance (N)
16,1
Weight Supplement Per 10 mm Stroke (g)
50
Actuator Pinion Effective Diameter (mm)
24,83
Supplement Moved Mass Per 10 mm Stroke (g)
0,69
EAN
4052568449285
Manufacturer
Festo
