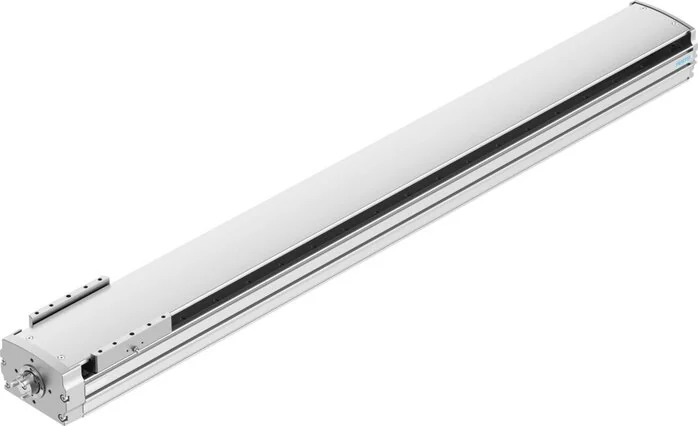

Festo - ELGT-BS-120-1000-20P-8124508 - Spindle Axis

SKU: festo-elgt-bs-120-1000-20p-8124508

Browse all parts
Festo - ELGT-BS-120-1000-20P-8124508 - Spindle Axis

€4,034.80€3,448.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,034.80

Brand
Festo
Size
120
Guide
ball guide
Max. Speed
3000
Motor Type
Servo motor
Spindle Type
Ball screw
Feed Constant
20
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
20
Reversing Play
150
Mass Inertia JO
0,2654
Moving Mass (g)
2036
Max. Speed (m/s)
1
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
15
Max. Force Fy (N)
6800
Max. Force Fz (N)
8090
Repeatability (mm)
±0.02
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
300
Max. Torque My (Nm)
310
Max. Torque Mz (Nm)
310
Protection Category
IP20
Stroke Reserve (mm)
0
Working Stroke (mm)
1000
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
15
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
805
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T46
Second Moment Of Area Iy
966.000
Second Moment Of Area Iz
6.011.000
Ambient Temperature (°C)
0 to 50
Continuous Feed Force (N)
805
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Base Weight At 0 mm Stroke (g)
5235
Torsional Moment Of Inertia To
506.000
Mass Inertia JH Per Metre Stroke
0,2522
Mass Inertia JL Per kg Usable Load
0,1013
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
290
Weight Supplement Per 10 mm Stroke (g)
124
Empty Run Torque At Maximum Movement Speed (Nm)
0,3
Empty Run Torque At Minimum Movement Speed (Nm)
0,08
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 8 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
25051
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
29804
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1105
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1142
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1142
EAN
4052568555313
Manufacturer
Festo
