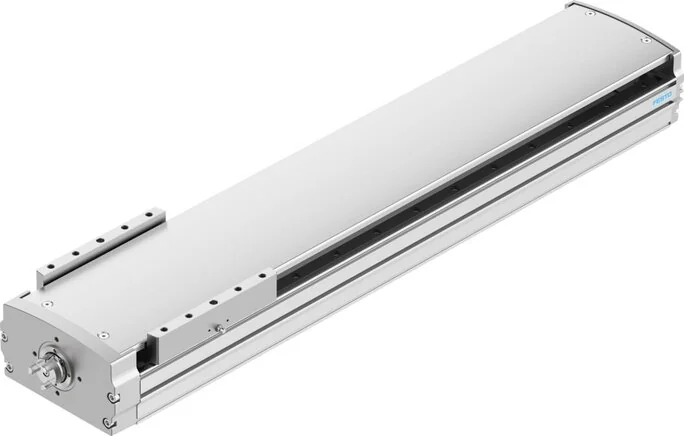

Festo - ELGT-BS-160-600-20P-8124532 - Spindle Axis

SKU: festo-elgt-bs-160-600-20p-8124532

Browse all parts
Festo - ELGT-BS-160-600-20P-8124532 - Spindle Axis

€4,074.06€3,482.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,074.06

Brand
Festo
Size
160
Guide
ball guide
Max. Speed
3000
Motor Type
Servo motor
Spindle Type
Ball screw
Feed Constant
20
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
20
Reversing Play
150
Mass Inertia JO
0,6342
Moving Mass (g)
3842
Max. Speed (m/s)
1
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
15
Max. Force Fy (N)
9550
Max. Force Fz (N)
11370
Repeatability (mm)
±0.02
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
600
Max. Torque My (Nm)
560
Max. Torque Mz (Nm)
560
Protection Category
IP20
Stroke Reserve (mm)
0
Working Stroke (mm)
600
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
20
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
1045
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T46
Second Moment Of Area Iy
1.411.000
Second Moment Of Area Iz
15.257.000
Ambient Temperature (°C)
0 to 50
Continuous Feed Force (N)
1045
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Base Weight At 0 mm Stroke (g)
9601
Torsional Moment Of Inertia To
726.000
Mass Inertia JH Per Metre Stroke
0,9027
Mass Inertia JL Per kg Usable Load
0,1013
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
290
Weight Supplement Per 10 mm Stroke (g)
188
Empty Run Torque At Maximum Movement Speed (Nm)
0,4
Empty Run Torque At Minimum Movement Speed (Nm)
0,14
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 8 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
35183
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
41887
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
2210
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
2063
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
2063
EAN
4052568555511
Manufacturer
Festo
