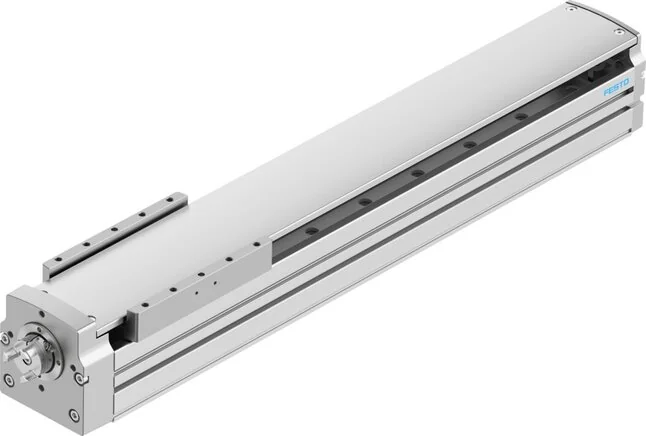

Festo - ELGT-BS-90-400-20P-8124425 - Spindle Axis

SKU: festo-elgt-bs-90-400-20p-8124425

Browse all parts
Festo - ELGT-BS-90-400-20P-8124425 - Spindle Axis

€2,050.19€1,752.30 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,050.19

Brand
Festo
Size
90
Guide
ball guide
Max. Speed
3000
Motor Type
Servo motor
Spindle Type
Ball screw
Feed Constant
20
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
20
Reversing Play
150
Mass Inertia JO
0,2291
Moving Mass (g)
1645
Max. Speed (m/s)
1
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
15
Max. Force Fy (N)
4710
Max. Force Fz (N)
5600
Repeatability (mm)
±0.02
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
65
Max. Torque My (Nm)
51
Max. Torque Mz (Nm)
51
Protection Category
IP20
Stroke Reserve (mm)
0
Working Stroke (mm)
400
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
15
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
810
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T46
Second Moment Of Area Iy
631.000
Second Moment Of Area Iz
1.948.000
Ambient Temperature (°C)
0 to 50
Continuous Feed Force (N)
810
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Base Weight At 0 mm Stroke (g)
4353
Torsional Moment Of Inertia To
151.000
Mass Inertia JH Per Metre Stroke
0,2522
Mass Inertia JL Per kg Usable Load
0,1013
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
290
Weight Supplement Per 10 mm Stroke (g)
104
Empty Run Torque At Maximum Movement Speed (Nm)
0,2
Empty Run Torque At Minimum Movement Speed (Nm)
0,04
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
17352
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
20631
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
239
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
188
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
188
EAN
4052568554958
Manufacturer
Festo
