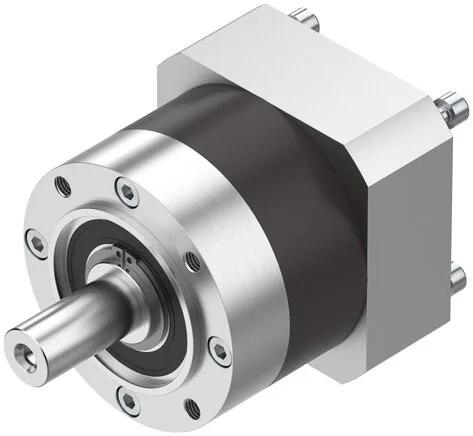

Festo - EMGA-120-P-G5-SAS-100-552197 - Gearbox

SKU: festo-emga-120-p-g5-sas-100-552197

Browse all parts
Festo - EMGA-120-P-G5-SAS-100-552197 - Gearbox

€1,380.79€1,180.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,380.79

Brand
Festo
Gear Type
Planetary drive
Gear Ratio
05:01
Material Note
RoHs compliant
Mass Inertia Drives
1,530
Max. Actuator Speed
6500
Protection Category
IP54
Torsional Play (°)
0,12
Torsional Stiffness
12
Interface Gears Drive
100A
Flange Size Drive (mm)
120
Flange Size Motor (mm)
100
Interface Drive Output
120G
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Torque (Nm)
312,0
Max. Degree Of Effectiveness
98
Continuous Output Torque (Nm)
195,0
Operating Temperature Drive (°C)
-25 to 90
Permitted Axial Shaft Loading (N)
2500
Permitted Radial Shaft Loading (N)
1750
EAN
4052568194093
Manufacturer
Festo
