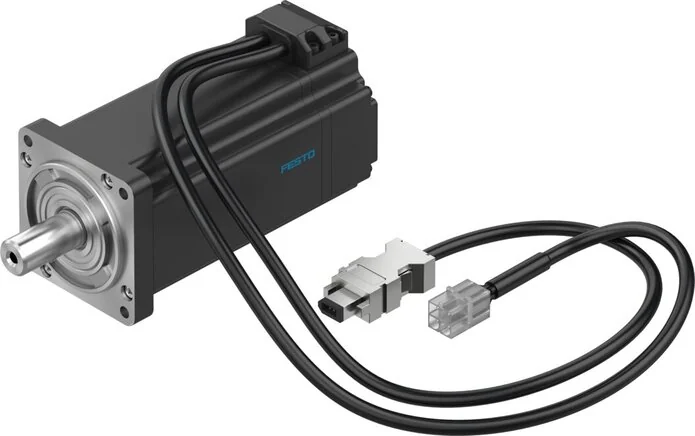

Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Measuring Flange
255 x 255 x 8 mm, Aluminium
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Certification Body
UL E342973
Complies To Standard
IEC 60034
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
10.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Nominal Voltage DC (V)
300
Standstill Torque (Nm)
0,7
Temperature Monitoring
Digitale Motortemperaturübertragung per Nikon A-Format
Winding Switching Type
Star internal
Heat Class To EN 60034-1
F
Motor Type To EN 60034-7
IM V3
Nominal Rotational Speed
3000
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 55
Nominal Current Motor (A)
1,4
Rotor Position Transducer
Encoder absolut multi turn
Electric Time Constant (ms)
1,87
Voltage Constant Phase-phase
29
Nominal Performance Motor (W)
200
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
155
Total Output Moment Of Gyration
0,214
Winding Inductivity Phase-phase
20,9
Nominal Operating Voltage DC (V)
300
Continuous Standstill Current (A)
1,5
Permitted Axial Shaft Loading (N)
90
Permitted Radial Shaft Loading (N)
180
Rotor Position Transducer Interface
Nikon A-Format
Winding Resistance Phase-phase (Ohm)
11,2
Information About Protection Category
IP65 für Motorgehäuse ohne Anschlusstechnik
Electrical Connection 1, Connection Type
Plug
Bearing Lifetime Under Nominal Conditions
20.000
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
20
Electrical Connection 1, Connection Pattern
995792
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Anschlussbild RE
Electrical Connection 1, Number Of Pins / Wires
6
Rotor Position Sensor, DC Operating Voltage (V)
5
Rotor Position Sensor, Manufacturer Designation
MAR-MX50AHN00
Rotor Position Transducer Measurement Principle
Visual
Rotor Position Sensor, DC Operating Voltage Range (V)
4,75 to 5,25
Rotor Position Sensor, Position Values Per Revolution
1048576
Rotor Position Sensor, Absolute Detectable Revolutions
65536
Concentricity, Coaxiality, Axial Runout To DIN SPEC 42955
N
Rotor Position Sensor, System Accuracy Of Angle Measurement
-120 to 120
