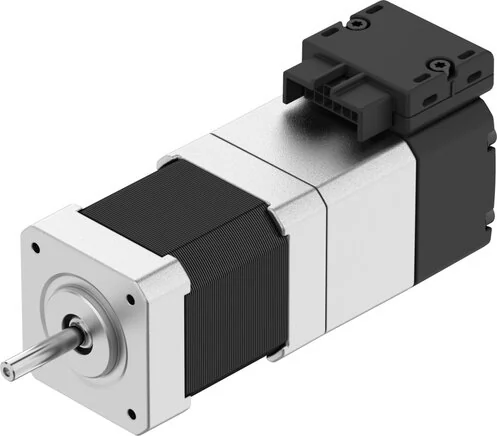

Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Measuring Flange
200 x 200 x 15 mm, Stahl
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
Not condensing
Certification Body
UL E342973
Complies To Standard
IEC 60034
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
8.000
Max. Setup Height (m)
4.000
Brake Coil Inductivity
107
LABS (PWIS) Conformity
VDMA24364-Zone III
Voltage Constant Phase
22,6
Brake Closing Time (ms)
97
Heat Class To EN 60034-1
B
Interface Code Motor Out
57A
Max. Brake No-load Speed
8.000
Motor Type To EN 60034-7
IM V3
Phase Winding Inductance
0,95
Step Angle Tolerance (%)
±5
Thermal Resistance (K/W)
1,5
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Brake (Nm)
1,74
Holding Torque Motor (Nm)
1,8
Nominal Current Motor (A)
5
Brake Separation Time (ms)
32
Brake Coil Resistance (Ohm)
63,8
Electric Time Constant (ms)
3,7
Power Consumption Brake (W)
9
Thermal Time Constant (min)
32
DC Brake Response Delay (ms)
11
Step Angle At Full Step (°)
1,8
Switching Play Holding Brake
10 Mio. Leerbetätigungen (ohne Reibarbeit!)
Brake Current Consumption (A)
0,38
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
130
Winding Resistance Phase (Ohm)
0,26
Operating Voltage DC Brakes (V)
24
Total Output Moment Of Gyration
0,504
Nominal Operating Voltage DC (V)
48
Continuous Standstill Current (A)
5,8
Permitted Axial Shaft Loading (N)
15
Number Of Emergency Stops Per Hour
1
Permitted Radial Shaft Loading (N)
75
Winding Cross Inductivity Lq (Phase)
0,95
Information About Protection Category
IP40 Motorwelle
Max. Friction Per Braking Process (J)
6000
Electrical Connection 1, Connection Type
Hybrid plug
Measurement Class According To DIN 60034-1
S1
Electrical Connection 1, Connection Pattern
997534
Winding Longitudinal Inductivity Ld (Phase)
1,75
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Anschlussbild L10
Electrical Connection 1, Number Of Pins / Wires
14
