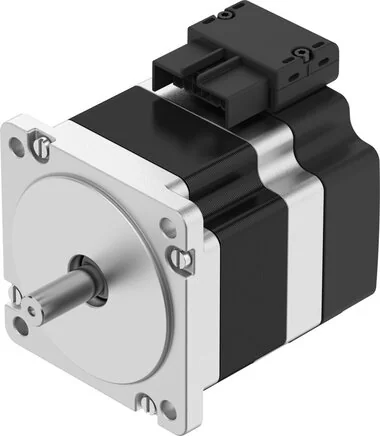

Festo - EMMB-ST-87-S-S-8156149 - Stepper Motor

SKU: festo-emmb-st-87-s-s-8156149

Browse all parts
Festo - EMMB-ST-87-S-S-8156149 - Stepper Motor

€297.65€254.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€297.65

Brand
Festo
Max. Speed
2200
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Motor Constant
0,24
Measuring Flange
250 x 250 x 15 mm, Stahl
Peak Current (A)
12
Peak Torque (Nm)
2,7
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
Not condensing
Certification Body
UL E342973
Protection Category
IP20
Complies To Standard
IEC 60034
Number Of Pole Pairs
50
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
7.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Voltage Constant Phase
15,4
Heat Class To EN 60034-1
B
Interface Code Motor Out
87A
Motor Type To EN 60034-7
IM V3
Phase Winding Inductance
0,35
Step Angle Tolerance (%)
±5
Thermal Resistance (K/W)
0,91
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Motor (Nm)
2,4
Nominal Current Motor (A)
6,9
Electric Time Constant (ms)
1,75
Thermal Time Constant (min)
37
Step Angle At Full Step (°)
1,8
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
130
Winding Resistance Phase (Ohm)
0,13
Total Output Moment Of Gyration
1
Nominal Operating Voltage DC (V)
48
Continuous Standstill Current (A)
9,5
Permitted Axial Shaft Loading (N)
60
Permitted Radial Shaft Loading (N)
220
Winding Cross Inductivity Lq (Phase)
0,35
Information About Protection Category
IP40 Motorwelle
Electrical Connection 1, Connection Type
Hybrid plug
Measurement Class According To DIN 60034-1
S1
Electrical Connection 1, Connection Pattern
997534
Winding Longitudinal Inductivity Ld (Phase)
0,56
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Anschlussbild L10
Electrical Connection 1, Number Of Pins / Wires
14
EAN
4052568639372
Manufacturer
Festo
