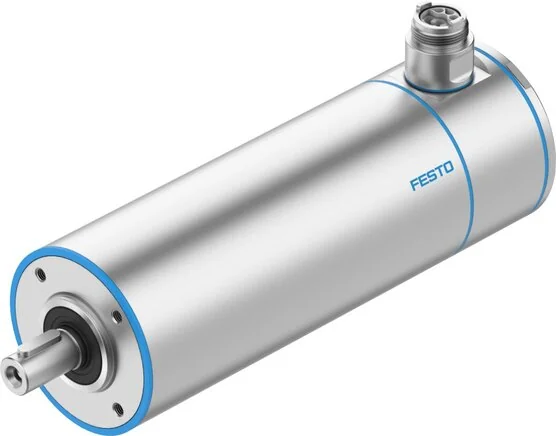

Detent Torque
<1,0% vom Spitzendrehmoment
Material Note
RoHs compliant
Measuring Flange
300 x 300 x 30 mm, Stahl
Shock Resistance
15 g/11 ms nach EN 60068-2-27
Relative Humidity
0 - 100 %
Food Compatibility
Zugelassen für direkten Lebensmittelkontakt
Angular Acceleration
100000
Complies To Standard
IEC 60034
MTTF, Part Component
190 Jahre, Rotorlagegeber
Oscillation Strength
according to EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
10.000
Max. Setup Height (m)
3.000
Brake Coil Inductivity
1000
LABS (PWIS) Conformity
VDMA24364-Zone III
Standstill Torque (Nm)
1,75
Temperature Monitoring
Digitale Motortemperaturübertragung per EnDat 2.2
Winding Switching Type
Star internal
Brake Closing Time (ms)
28
Heat Class To EN 60034-1
F
Interface Code Motor Out
68C
Max. Brake No-load Speed
12.000
Motor Type To EN 60034-7
IM V18
Nominal Rotational Speed
3100
Thermal Resistance (K/W)
1,25
Ambient Temperature (°C)
-30 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Brake (Nm)
2,8
Nominal Current Motor (A)
1,2
Rotor Position Transducer
Encoder absolut multi turn
Brake Separation Time (ms)
40
Standstill Torque Constant
0,76
Brake Coil Resistance (Ohm)
54,5
Electric Time Constant (ms)
2,2
Power Consumption Brake (W)
10,5
Thermal Time Constant (min)
55
DC Brake Response Delay (ms)
10
Switching Play Holding Brake
10 Mio. Leerbetätigungen (ohne Reibarbeit!)
Voltage Constant Phase-phase
53,6
Brake Current Consumption (A)
0,44
Nominal Performance Motor (W)
260
Corrosion Resistance Class KBK
(ausgenommen Lasermarkierung)
Max. Winding Temperature (°C)
155
Operating Voltage DC Brakes (V)
24
Total Output Moment Of Gyration
0,809
Winding Inductivity Phase-phase
9,5
Nominal Operating Voltage DC (V)
680
Continuous Standstill Current (A)
2,3
Permitted Axial Shaft Loading (N)
68
Number Of Emergency Stops Per Hour
1
Permitted Radial Shaft Loading (N)
340
Rotor Position Transducer Interface
EnDat 22
Winding Cross Inductivity Lq (Phase)
4,8
Winding Resistance Phase-phase (Ohm)
4,8
Max. Friction Per Braking Process (J)
310
Electrical Connection 1, Connection Type
Hybrid plug
Bearing Lifetime Under Nominal Conditions
20.000
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
19
Electrical Connection 1, Connection Pattern
997714
Winding Longitudinal Inductivity Ld (Phase)
4,3
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M17x0,75
Electrical Connection 1, Number Of Pins / Wires
15
Rotor Position Sensor, DC Operating Voltage (V)
5
Rotor Position Sensor, Manufacturer Designation
EQI 1131
Rotor Position Transducer Measurement Principle
Inductive
Rotor Position Sensor, DC Operating Voltage Range (V)
3,6 to 14
Rotor Position Sensor, Position Values Per Revolution
524288
Rotor Position Sensor, Absolute Detectable Revolutions
4096
Concentricity, Coaxiality, Axial Runout To DIN SPEC 42955
N
Rotor Position Sensor, System Accuracy Of Angle Measurement
-120 to 120
