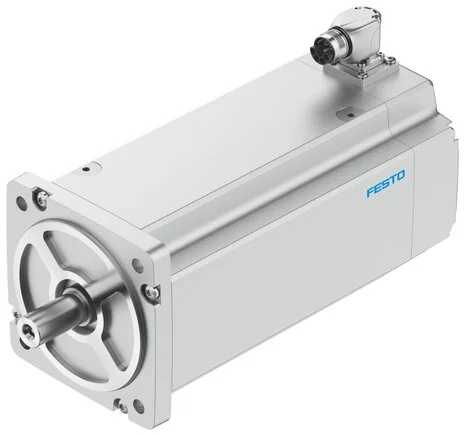

Permission
c UL us - Recognized (OL)
Detent Torque
<1,0% vom Spitzendrehmoment
Material Note
RoHs compliant
Measuring Flange
450 x 450 x 30 mm, Stahl
Shock Resistance
15 g/11 ms nach EN 60068-2-27
Energy Efficiency
ENEFF (CN) / Class 1
Relative Humidity
0 - 90 %
Certification Body
UL E342973
Angular Acceleration
100000
Complies To Standard
IEC 60034
MTTF, Part Component
190 Jahre, Rotorlagegeber
Oscillation Strength
according to EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
8.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Temperature Monitoring
Digitale Motortemperaturübertragung per EnDat 2.2
Winding Switching Type
Star internal
Heat Class To EN 60034-1
F
Interface Code Motor Out
150A
Motor Type To EN 60034-7
IM V3
Nominal Rotational Speed
1000
Shaft Design Feather Key
A 8 x 7 x 36
Thermal Resistance (K/W)
0,42
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 70
Nominal Current Motor (A)
10,3
Rotor Position Transducer
Encoder absolut multi turn
Standstill Torque Constant
4,38
Electric Time Constant (ms)
15,6
Thermal Time Constant (min)
55
Voltage Constant Phase-phase
264,9
Nominal Performance Motor (W)
4157
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
155
Total Output Moment Of Gyration
57,6
Winding Inductivity Phase-phase
15,7
Nominal Operating Voltage DC (V)
680
Continuous Standstill Current (A)
11,4
Permitted Axial Shaft Loading (N)
346
Permitted Radial Shaft Loading (N)
1730
Rotor Position Transducer Interface
EnDat 22
Winding Cross Inductivity Lq (Phase)
7,85
Winding Resistance Phase-phase (Ohm)
1,016
Information About Protection Category
IP67 für Motorgehäuse inklusive Anschlusstechnik
Electrical Connection 1, Connection Type
Hybrid plug
Bearing Lifetime Under Nominal Conditions
20.000
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
19
Electrical Connection 1, Connection Pattern
995913
Winding Longitudinal Inductivity Ld (Phase)
7,95
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M23x1
Electrical Connection 1, Number Of Pins / Wires
15
Rotor Position Sensor, DC Operating Voltage (V)
5
Rotor Position Sensor, Manufacturer Designation
EQI 1331
Rotor Position Transducer Measurement Principle
Inductive
Rotor Position Sensor, DC Operating Voltage Range (V)
3,6 to 14
Rotor Position Sensor, Position Values Per Revolution
524288
Rotor Position Sensor, Absolute Detectable Revolutions
4096
Concentricity, Coaxiality, Axial Runout To DIN SPEC 42955
N
Rotor Position Sensor, System Accuracy Of Angle Measurement
-65 to 65
