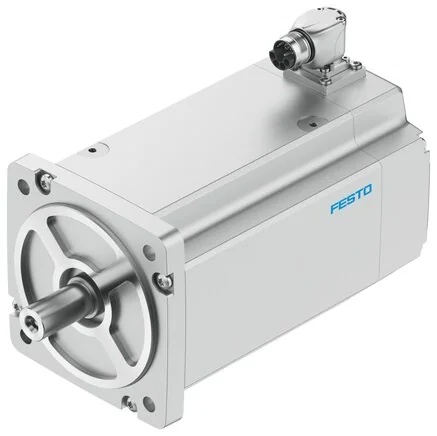

Festo - EMMT-AS-150-MK-HS-R2MB-8148286 - Servo Motor

SKU: festo-emmt-as-150-mk-hs-r2mb-8148286

Browse all parts
Festo - EMMT-AS-150-MK-HS-R2MB-8148286 - Servo Motor

€4,017.85€3,434.06 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,017.85

Brand
Festo
Max. Speed
2368
Permission
c UL us - Recognized (OL)
Detent Torque
<1,0% vom Spitzendrehmoment
Material Note
RoHs compliant
Motor Constant
2,85
Balance Quality
G 2,5
Measuring Flange
450 x 450 x 30 mm, Stahl
Peak Current (A)
24
Peak Torque (Nm)
64
Shock Resistance
15 g/11 ms nach EN 60068-2-27
Energy Efficiency
ENEFF (CN) / Class 1
Relative Humidity
0 - 90 %
Certification Body
UL E342973
Mass Inertia Brake
8,2
Nominal Torque (Nm)
27,1
Protection Category
IP21
Angular Acceleration
100000
Complies To Standard
IEC 60034
MTTF, Part Component
190 Jahre, Rotorlagegeber
Number Of Pole Pairs
5
Oscillation Strength
according to EN 60068-2-6
Total Brake Friction
2600
Installation Position
arbitrary
Max. Mechanical Speed
10.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Standstill Torque (Nm)
33
Temperature Monitoring
Digitale Motortemperaturübertragung per EnDat 2.2
Winding Switching Type
Star internal
Brake Closing Time (ms)
45
Degree Of Contamination
2
Heat Class To EN 60034-1
F
Interface Code Motor Out
150A
Max. Brake No-load Speed
10.000
Motor Type To EN 60034-7
IM V3
Nominal Rotational Speed
1500
Shaft Design Feather Key
A 8 x 7 x 36
Thermal Resistance (K/W)
0,45
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Brake (Nm)
45
Nominal Current Motor (A)
9,5
Rotor Position Transducer
Encoder absolut multi turn
Brake Separation Time (ms)
230
Standstill Torque Constant
3,3
Electric Time Constant (ms)
15,4
Power Consumption Brake (W)
26
Thermal Time Constant (min)
45
DC Brake Response Delay (ms)
6
Switching Play Holding Brake
5 million empty actuation (without frictional work!)
Voltage Constant Phase-phase
199,4
Brake Current Consumption (A)
1,08
Nominal Performance Motor (W)
4257
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
155
Operating Voltage DC Brakes (V)
24
Total Output Moment Of Gyration
46,9
Winding Inductivity Phase-phase
14,6
Nominal Operating Voltage DC (V)
680
Continuous Standstill Current (A)
11,4
Permitted Axial Shaft Loading (N)
294
Number Of Emergency Stops Per Hour
1
Permitted Radial Shaft Loading (N)
1470
Rotor Position Transducer Interface
EnDat 22
Winding Cross Inductivity Lq (Phase)
7,3
Winding Resistance Phase-phase (Ohm)
0,935
Information About Protection Category
IP67 für Motorgehäuse inklusive Anschlusstechnik
Max. Friction Per Braking Process (J)
28000
Electrical Connection 1, Connection Type
Hybrid plug
Bearing Lifetime Under Nominal Conditions
20.000
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
19
Electrical Connection 1, Connection Pattern
995913
Winding Longitudinal Inductivity Ld (Phase)
7,2
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M23x1
Electrical Connection 1, Number Of Pins / Wires
15
Rotor Position Sensor, DC Operating Voltage (V)
5
Rotor Position Sensor, Manufacturer Designation
EQI 1331
Rotor Position Transducer Measurement Principle
Inductive
Rotor Position Sensor, DC Operating Voltage Range (V)
3,6 to 14
Rotor Position Sensor, Position Values Per Revolution
524288
Rotor Position Sensor, Absolute Detectable Revolutions
4096
Concentricity, Coaxiality, Axial Runout To DIN SPEC 42955
N
Rotor Position Sensor, System Accuracy Of Angle Measurement
-65 to 65
EAN
4052568591267
Manufacturer
Festo
