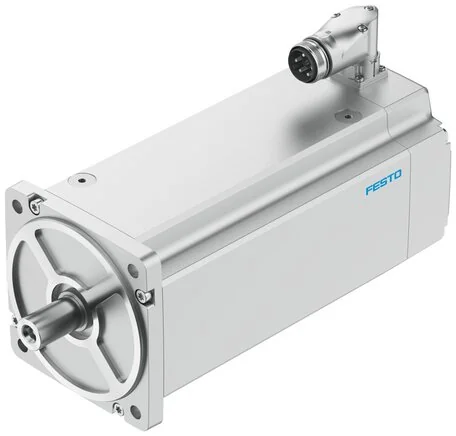

Festo - EMMT-AS-190-LK-HT-R3MYB-8148401 - Servo Motor

SKU: festo-emmt-as-190-lk-ht-r3myb-8148401

Browse all parts
Festo - EMMT-AS-190-LK-HT-R3MYB-8148401 - Servo Motor

€7,650.92€6,539.25 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€7,650.92

Brand
Festo
Max. Speed
1654
Permission
c UL us - Recognized (OL)
Maximum SIL
siehe Anwenderdokumentation
Detent Torque
<1,0% vom Spitzendrehmoment
Material Note
RoHs compliant
Safety Device
Sicherheitsbauteil
Motor Constant
4,12
Balance Quality
G 2,5
Measuring Flange
450 x 450 x 30 mm, Stahl
Peak Current (A)
49,7
Peak Torque (Nm)
183,3
Shock Resistance
15 g/11 ms nach EN 60068-2-27
Energy Efficiency
ENEFF (CN) / Class 1
Relative Humidity
0 - 90 %
Certification Body
UL E342973
Mass Inertia Brake
50
Nominal Torque (Nm)
82,4
Protection Category
IP21
Angular Acceleration
100000
Complies To Standard
IEC 60034
MTTF, Part Component
190 Jahre, Rotorlagegeber
Number Of Pole Pairs
5
Oscillation Strength
according to EN 60068-2-6
PFHd, Part Component
15 x 10E-9, Encoder
Total Brake Friction
13000
Installation Position
arbitrary
Max. Mechanical Speed
8.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Standstill Torque (Nm)
93,7
Temperature Monitoring
Digitale Motortemperaturübertragung per EnDat 2.2
Winding Switching Type
Star internal
Brake Closing Time (ms)
65
Degree Of Contamination
2
Maximum PL And Category
siehe Anwenderdokumentation
Heat Class To EN 60034-1
F
Interface Code Motor Out
190B
Max. Brake No-load Speed
8.000
Motor Type To EN 60034-7
IM V3
Nominal Rotational Speed
1000
Shaft Design Feather Key
A 10 x 8 x 45
Thermal Resistance (K/W)
0,3
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Brake (Nm)
115
Nominal Current Motor (A)
20
Rotor Position Transducer
Safety Encoder absolut multi turn
Brake Separation Time (ms)
190
Standstill Torque Constant
4,79
Electric Time Constant (ms)
38,8
Power Consumption Brake (W)
50
Thermal Time Constant (min)
80
DC Brake Response Delay (ms)
12
Switching Play Holding Brake
5 million empty actuation (without frictional work!)
Voltage Constant Phase-phase
289,7
Brake Current Consumption (A)
2,08
Nominal Performance Motor (W)
8629
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
155
Safety Subfunctions Up To SIL3
Sichere Erfassung und Übertragung von Single-Turn-Positionsdaten, nur mit Zusatzsoftwarefunktion im Antriebsregler
Operating Voltage DC Brakes (V)
24
Safety Sub-functions Up To SIL2
Sichere Erfassung und Übertragung von Single-Turn-Positionsdaten
Total Output Moment Of Gyration
195
Winding Inductivity Phase-phase
13,8
Nominal Operating Voltage DC (V)
680
Continuous Standstill Current (A)
22,8
Permitted Axial Shaft Loading (N)
520
Number Of Emergency Stops Per Hour
1
Permitted Radial Shaft Loading (N)
2620
Rotor Position Transducer Interface
EnDat 22
Winding Cross Inductivity Lq (Phase)
6,9
Winding Resistance Phase-phase (Ohm)
0,358
Information About Protection Category
IP67 für Motorgehäuse inklusive Anschlusstechnik
Max. Friction Per Braking Process (J)
62000
Safety Subfunction Up To PL E, Cat. 3
Sichere Erfassung und Übertragung von Single-Turn-Positionsdaten, nur mit Zusatzsoftwarefunktion im Antriebsregler
Duration Of Use Tm, Partial Components
20 years, rotor position sensor
Safety Sub-function Up To PL D, Cat. 3
Sichere Erfassung und Übertragung von Single-Turn-Positionsdaten
Electrical Connection 1, Connection Type
Hybrid plug
Bearing Lifetime Under Nominal Conditions
20.000
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
19
Electrical Connection 1, Connection Pattern
997380
Winding Longitudinal Inductivity Ld (Phase)
6,95
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M40x1
Electrical Connection 1, Number Of Pins / Wires
15
Rotor Position Sensor, DC Operating Voltage (V)
5
Rotor Position Sensor, Manufacturer Designation
EQI 1331
Rotor Position Transducer Measurement Principle
Inductive
Rotor Position Sensor, DC Operating Voltage Range (V)
3,6 to 14
Rotor Position Sensor, Position Values Per Revolution
524288
Rotor Position Sensor, Absolute Detectable Revolutions
4096
Concentricity, Coaxiality, Axial Runout To DIN SPEC 42955
N
Rotor Position Sensor, System Accuracy Of Angle Measurement
-65 to 65
EAN
4052568592417
Manufacturer
Festo
