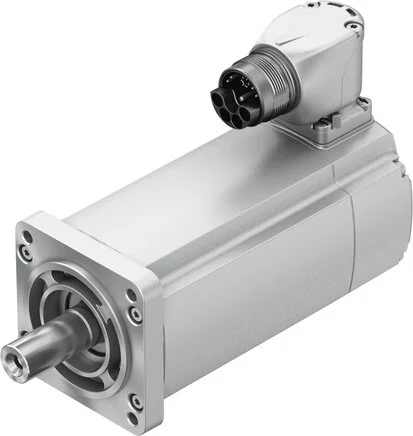

Permission
c UL us - Recognized (OL)
Detent Torque
<1,0% vom Spitzendrehmoment
Material Note
RoHs compliant
Measuring Flange
250 x 250 x 15 mm, Stahl
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Certification Body
UL E342973
Angular Acceleration
100000
Complies To Standard
IEC 60034
MTTF, Part Component
190 Jahre, Rotorlagegeber
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
16.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Standstill Torque (Nm)
1,24
Temperature Monitoring
Digitale Motortemperaturübertragung per EnDat 2.2
Winding Switching Type
Star internal
Heat Class To EN 60034-1
F
Interface Code Motor Out
60P
Motor Type To EN 60034-7
IM V3
Nominal Rotational Speed
3000
Thermal Resistance (K/W)
1,1
Ambient Temperature (°C)
-40 to 40
Bearing Temperature (°C)
-40 to 70
Nominal Current Motor (A)
2,4
Rotor Position Transducer
Encoder absolut single turn
Standstill Torque Constant
0,53
Electric Time Constant (ms)
2,7
Thermal Time Constant (min)
41
Voltage Constant Phase-phase
32
Nominal Performance Motor (W)
350
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
155
Total Output Moment Of Gyration
0,286
Winding Inductivity Phase-phase
20
Nominal Operating Voltage DC (V)
325
Continuous Standstill Current (A)
2,7
Permitted Axial Shaft Loading (N)
70
Permitted Radial Shaft Loading (N)
350
Rotor Position Transducer Interface
EnDat 22
Winding Cross Inductivity Lq (Phase)
10
Winding Resistance Phase-phase (Ohm)
4,85
Information About Protection Category
IP67 für Motorgehäuse inklusive Anschlusstechnik
Electrical Connection 1, Connection Type
Hybrid plug
Bearing Lifetime Under Nominal Conditions
20.000
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
18
Electrical Connection 1, Connection Pattern
995913
Winding Longitudinal Inductivity Ld (Phase)
8
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M23x1
Electrical Connection 1, Number Of Pins / Wires
15
Rotor Position Sensor, DC Operating Voltage (V)
5
Rotor Position Sensor, Manufacturer Designation
ECI 1118
Rotor Position Transducer Measurement Principle
Inductive
Rotor Position Sensor, DC Operating Voltage Range (V)
3,6 to 14
Rotor Position Sensor, Position Values Per Revolution
262144
Rotor Position Sensor, Absolute Detectable Revolutions
1
Concentricity, Coaxiality, Axial Runout To DIN SPEC 42955
N
Rotor Position Sensor, System Accuracy Of Angle Measurement
-120 to 120
