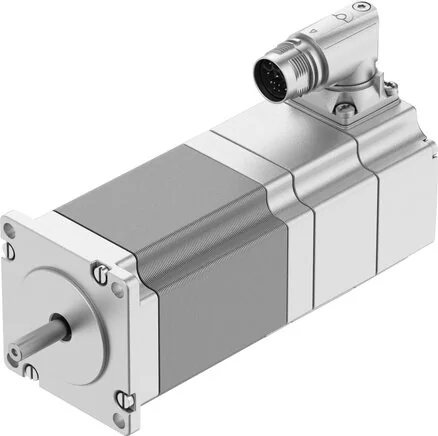

Festo - EMMT-ST-42-S-R-8156161 - Stepper Motor

SKU: festo-emmt-st-42-s-r-8156161

Browse all parts
Festo - EMMT-ST-42-S-R-8156161 - Stepper Motor

€231.79€198.11 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€231.79

Brand
Festo
Max. Speed
2700
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Motor Constant
0,133
Measuring Flange
200 x 200 x 15 mm, Stahl
Peak Current (A)
2
Peak Torque (Nm)
0,25
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
Not condensing
Certification Body
UL E342973
Protection Category
IP40
Complies To Standard
IEC 60034
Number Of Pole Pairs
50
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
9.000
Max. Setup Height (m)
4.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Voltage Constant Phase
12,1
Heat Class To EN 60034-1
B
Interface Code Motor Out
42A
Motor Type To EN 60034-7
IM V3
Phase Winding Inductance
0,30
Step Angle Tolerance (%)
±5
Thermal Resistance (K/W)
3,5
Ambient Temperature (°C)
0 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Motor (Nm)
0,25
Nominal Current Motor (A)
1,8
Electric Time Constant (ms)
1,4
Thermal Time Constant (min)
22
Step Angle At Full Step (°)
1,8
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
130
Winding Resistance Phase (Ohm)
2,10
Total Output Moment Of Gyration
0,035
Nominal Operating Voltage DC (V)
48
Continuous Standstill Current (A)
2
Permitted Axial Shaft Loading (N)
10
Permitted Radial Shaft Loading (N)
28
Winding Cross Inductivity Lq (Phase)
3
Information About Protection Category
IP65 für Motorgehäuse inklusive Anschlusstechnik
Electrical Connection 1, Connection Type
Hybrid plug
Measurement Class According To DIN 60034-1
S1
Electrical Connection 1, Connection Pattern
997532
Winding Longitudinal Inductivity Ld (Phase)
1,6
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M17x0,75
Electrical Connection 1, Number Of Pins / Wires
12
EAN
4052568639495
Manufacturer
Festo
