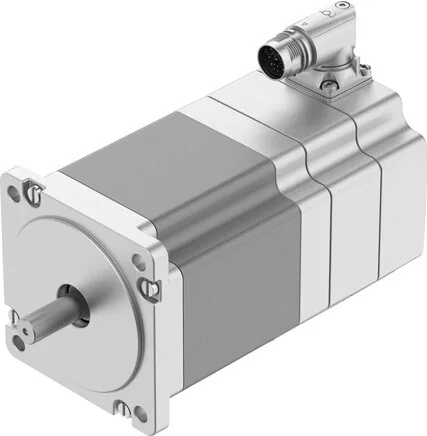

Festo - EMMT-ST-87-M-RMB-8156196 - Stepper Motor

SKU: festo-emmt-st-87-m-rmb-8156196

Browse all parts
Festo - EMMT-ST-87-M-RMB-8156196 - Stepper Motor

€1,071.80€916.07 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,071.80

Brand
Festo
Max. Speed
600
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Motor Constant
0,79
Measuring Flange
250 x 250 x 15 mm, Stahl
Peak Current (A)
12
Peak Torque (Nm)
6,8
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
Not condensing
Certification Body
UL E342973
Mass Inertia Brake
0,11
Nominal Torque (Nm)
5,9
Protection Category
IP40
Complies To Standard
IEC 60034
MTTF, Part Component
20 years, rotor position sensor
Number Of Pole Pairs
50
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Mechanical Speed
7.000
Max. Setup Height (m)
4.000
Brake Coil Inductivity
110
LABS (PWIS) Conformity
VDMA24364-Zone III
Temperature Monitoring
Dig. Motortemp. per BiSS-C
Voltage Constant Phase
56,6
Brake Closing Time (ms)
110
Heat Class To EN 60034-1
B
Interface Code Motor Out
87A
Max. Brake No-load Speed
7.000
Motor Type To EN 60034-7
IM V3
Nominal Rotational Speed
140
Phase Winding Inductance
2,30
Step Angle Tolerance (%)
±5
Thermal Resistance (K/W)
0,83
Ambient Temperature (°C)
-15 to 40
Bearing Temperature (°C)
-20 to 70
Holding Torque Brake (Nm)
4,26
Holding Torque Motor (Nm)
6,6
Nominal Current Motor (A)
7,5
Rotor Position Transducer
Encoder absolut multi turn
Brake Separation Time (ms)
44
Brake Coil Resistance (Ohm)
49,2
Electric Time Constant (ms)
8,5
Power Consumption Brake (W)
12
Thermal Time Constant (min)
32
DC Brake Response Delay (ms)
30
Step Angle At Full Step (°)
1,8
Switching Play Holding Brake
10 Mio. Leerbetätigungen (ohne Reibarbeit!)
Brake Current Consumption (A)
0,49
Nominal Performance Motor (W)
87
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Winding Temperature (°C)
130
Winding Resistance Phase (Ohm)
0,27
Operating Voltage DC Brakes (V)
24
Total Output Moment Of Gyration
2,016
Nominal Operating Voltage DC (V)
48
Continuous Standstill Current (A)
8,2
Permitted Axial Shaft Loading (N)
60
Number Of Emergency Stops Per Hour
1
Permitted Radial Shaft Loading (N)
220
Rotor Position Transducer Interface
BiSS-C
Winding Cross Inductivity Lq (Phase)
2,3
Information About Protection Category
IP65 für Motorgehäuse inklusive Anschlusstechnik
Max. Friction Per Braking Process (J)
14000
Electrical Connection 1, Connection Type
Hybrid plug
Measurement Class According To DIN 60034-1
S1
Rotor Position Transducer Resolution (Bit)
17
Electrical Connection 1, Connection Pattern
997532
Winding Longitudinal Inductivity Ld (Phase)
3,6
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M17x0,75
Electrical Connection 1, Number Of Pins / Wires
12
Rotor Position Sensor, DC Operating Voltage (V)
14
Rotor Position Sensor, Manufacturer Designation
KCD-BC33B-1617-U09C-JAQ-009
Rotor Position Transducer Measurement Principle
Magnetic
Rotor Position Sensor, DC Operating Voltage Range (V)
4,75 to 15
Rotor Position Sensor, Position Values Per Revolution
131072
Rotor Position Sensor, Absolute Detectable Revolutions
65536
Rotor Position Sensor, System Accuracy Of Angle Measurement
-310 to 310
Rotor Position Transducer Sinus / Cosinus Periods Per Rotation
2
EAN
4052568639846
Manufacturer
Festo
