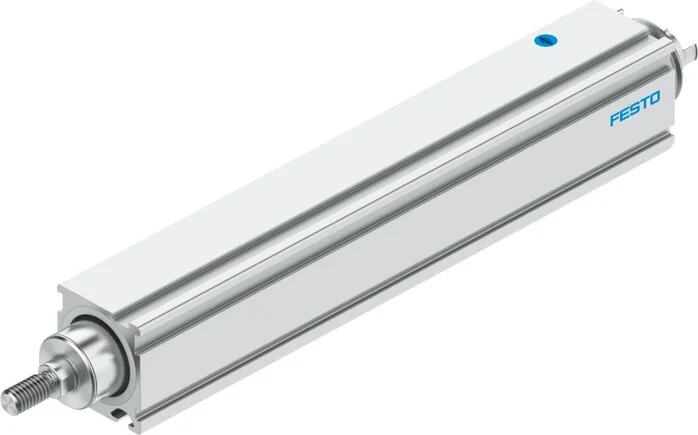

Festo - EPCC-BS-25-175-2P-A-5428811 - Electric Cylinder

SKU: festo-epcc-bs-25-175-2p-a-5428811

Browse all parts
Festo - EPCC-BS-25-175-2P-A-5428811 - Electric Cylinder

€607.80€519.49 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€607.80

Brand
Festo
Size
25
Max. Speed
4000
Motor Type
Servo motor
Stroke (mm)
175
Spindle Type
Ball screw drive
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
2
Fastening Type
With Accessories
Piston Rod End
Male thread
Reversing Play
100
Mass Inertia JO
0,0009
Housing Material
gleiteloxiert
Max. Speed (m/s)
0,083
Spindle Material
Roller bearing steel
Max. Acceleration
5
Piston Rod Thread
M6
Relative Humidity
Not condensing
Position Detection
For proximity switch
Repeatability (mm)
±0.02
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
0
Max. Torque My (Nm)
0,6
Max. Torque Mz (Nm)
0,6
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Stroke Reserve (mm)
0
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
6
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
75
Anti-twist Lock / Guide
Slide guided
Max. Homing Speed (m/s)
0,01
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Max. Actuator Torque (Nm)
0,05
Base Weight At 0 mm Stroke (g)
132
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,02
Moving Mass At 0 mm Stroke (g)
53
Mass Inertia JH Per Metre Stroke
0,0056
Mass Inertia JL Per kg Usable Load
0,001
Max. Radial Force On Drive Shaft (N)
30
Impact Energy At The End Positions (J)
0,0012
Weight Supplement Per 10 mm Stroke (g)
13
Max. Twist Angle Of The Piston Rod ± (°)
1
Supplement Moved Mass Per 10 mm Stroke (g)
2,6
Reference Value Effective Load, Vertical (kg)
6
Reference Value Effective Load, Horizontal (kg)
12
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 9 nach ISO 14644-1
EAN
4052568452407
Manufacturer
Festo
