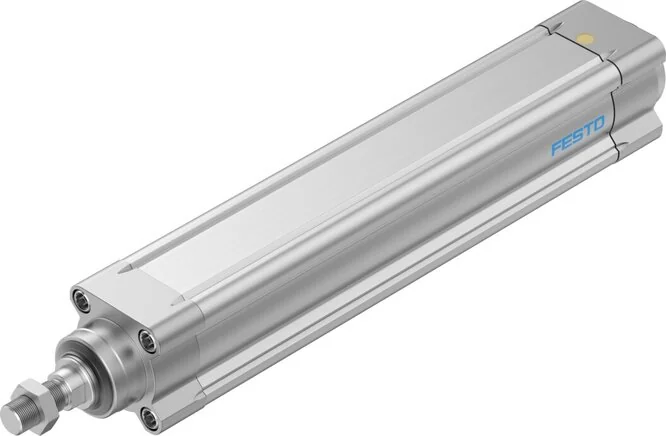

Festo - ESBF-BS-50-200-20P-8022598 - Electric Cylinder

SKU: festo-esbf-bs-50-200-20p-8022598

Browse all parts
Festo - ESBF-BS-50-200-20P-8022598 - Electric Cylinder

€1,939.51€1,657.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,939.51

Brand
Festo
Size
50
Max. Speed
3600
Motor Type
Servo motor
Stroke (mm)
200
Spindle Type
Ball screw
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
20
Cover Material
Aluminium-Knetlegierung, gleiteloxiert
Fastening Type
oder Zubehör
Piston Rod End
Male thread
Reversing Play
40
Mass Inertia JO
0,2203
Screws Material
Zinc-plated steel
Max. Speed (m/s)
1,33
Spindle Material
Roller bearing steel
Based On Standard
ISO 15552
Max. Acceleration
25
Piston Rod Thread
M16x1,5
Relative Humidity
0 - 95 %
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Repeatability (mm)
±0.01
Construction Set Up
Electro-cylinder with ball screw thread
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Working Stroke (mm)
200
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
20
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
5000
Anti-twist Lock / Guide
Slide guided
Interface Code Actuator
D50
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-20 to 60
Max. Actuator Torque (Nm)
16,3
Base Weight At 0 mm Stroke (g)
1982
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Empty Run Actuator Torque (Nm)
0,3
Moving Mass At 0 mm Stroke (g)
793
Mass Inertia JH Per Metre Stroke
1,1387
Mass Inertia JL Per kg Usable Load
0,1013
Max. Radial Force On Drive Shaft (N)
300
Weight Supplement Per 10 mm Stroke (g)
65
Max. Twist Angle Of The Piston Rod ± (°)
0,15
Supplement Moved Mass Per 10 mm Stroke (g)
35
Reference Value Effective Load, Vertical (kg)
500
Reference Value Effective Load, Horizontal (kg)
500
EAN
4052568278519
Manufacturer
Festo
