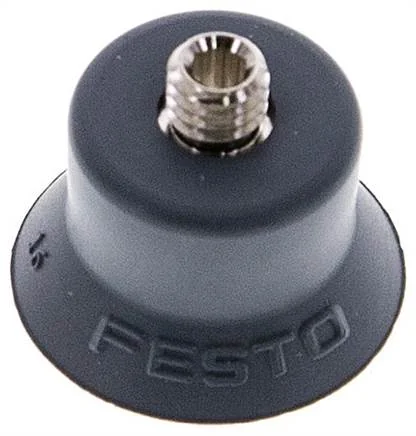

Festo - ESS-15-EF-189337 - Vacuum Sucker

SKU: festo-ess-15-ef-189337

Browse all parts
Festo - ESS-15-EF-189337 - Vacuum Sucker

€43.89€37.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€43.89

Brand
Festo
Colour
Grey
Material Note
RoHs compliant
Stud Material
Nickel-plated brass
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
rund extra-tief
Vacuum Connection
M4
Food Compatibility
See expanded material information
Nominal Width (mm)
2
Operating Pressure
-0,095 to 0
Suction Cup Volume
0,35
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
FPM
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 200
Suction Cup Diameter (mm)
15
Min. Workpiece Radius (mm)
20
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 3
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
14,5
Holding Force For Nominal Operating Pressure (N)
9,80
EAN
4052568078720
Manufacturer
Festo
