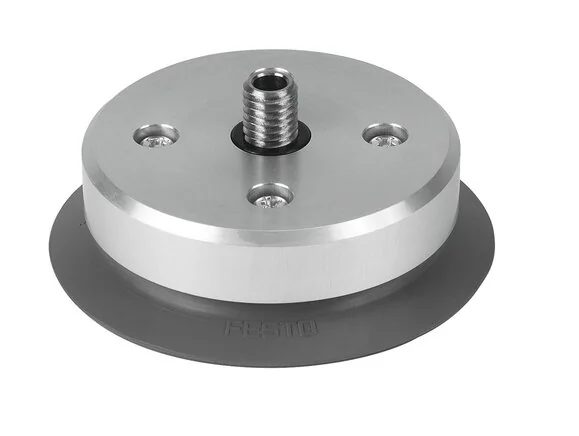

Festo - ESS-200-SF-189333 - Vacuum Sucker

SKU: festo-ess-200-sf-189333

Browse all parts
Festo - ESS-200-SF-189333 - Vacuum Sucker

€889.82€760.53 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€889.82

Brand
Festo
Colour
Grey
Material Note
RoHs compliant
Stud Material
Stahl, verzinkt und verchromt
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
M20x2
Food Compatibility
See expanded material information
Nominal Width (mm)
10
Operating Pressure
-0,095 to 0
Suction Cup Volume
245,454
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
FPM
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 200
Suction Cup Diameter (mm)
200
Min. Workpiece Radius (mm)
680
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 6
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
500,0
Holding Force For Nominal Operating Pressure (N)
1.610,00
EAN
4052568149901
Manufacturer
Festo
