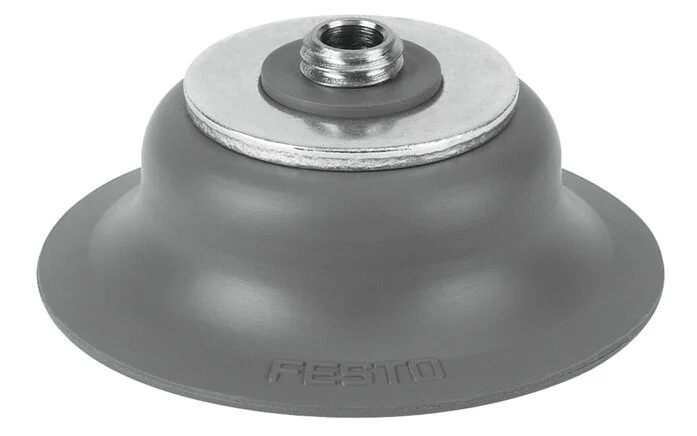

Festo - ESS-40-SF-189307 - Vacuum Sucker

SKU: festo-ess-40-sf-189307

Browse all parts
Festo - ESS-40-SF-189307 - Vacuum Sucker

€57.00€48.72 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€57.00

Brand
Festo
Colour
Grey
Material Note
RoHs compliant
Stud Material
Stahl, verzinkt und verchromt
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
M6
Food Compatibility
See expanded material information
Nominal Width (mm)
3
Operating Pressure
-0,095 to 0
Suction Cup Volume
1,566
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
FPM
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 200
Suction Cup Diameter (mm)
40
Min. Workpiece Radius (mm)
230
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 4
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
25,0
Holding Force For Nominal Operating Pressure (N)
69,60
EAN
4052568078645
Manufacturer
Festo
