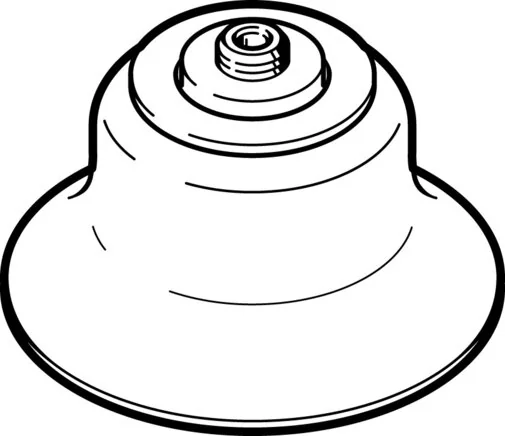

Festo - ESS-50-EU-189351 - Vacuum Sucker

SKU: festo-ess-50-eu-189351

Browse all parts
Festo - ESS-50-EU-189351 - Vacuum Sucker

€39.36€33.64 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.36

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Stud Material
Stahl, verzinkt und verchromt
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
rund extra-tief
Vacuum Connection
M6
Food Compatibility
See expanded material information
Nominal Width (mm)
3
Operating Pressure
-0,095 to 0
Suction Cup Volume
7,9
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
50
Min. Workpiece Radius (mm)
100
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 4
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
62,0
Holding Force For Nominal Operating Pressure (N)
103,60
EAN
4052568042424
Manufacturer
Festo
