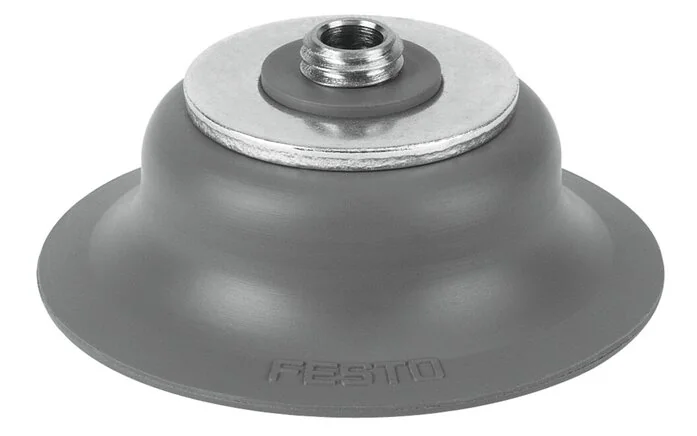

Festo - ESS-60-SF-189317 - Vacuum Sucker

SKU: festo-ess-60-sf-189317

Browse all parts
Festo - ESS-60-SF-189317 - Vacuum Sucker

€158.77€135.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€158.77

Brand
Festo
Colour
Grey
Material Note
RoHs compliant
Stud Material
Stahl, verzinkt und verchromt
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
M10
Food Compatibility
See expanded material information
Nominal Width (mm)
6
Operating Pressure
-0,095 to 0
Suction Cup Volume
3,953
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
FPM
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 200
Suction Cup Diameter (mm)
60
Min. Workpiece Radius (mm)
350
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 5
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
117,5
Holding Force For Nominal Operating Pressure (N)
166,10
EAN
4052568149802
Manufacturer
Festo
