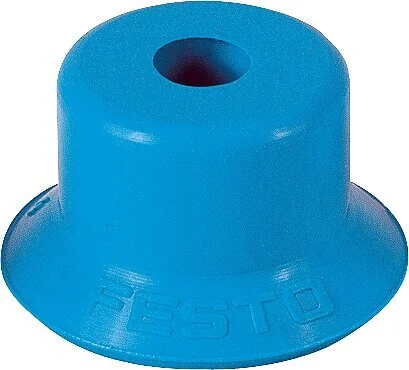

Festo - ESV-20-EU-191024 - Vacuum Suction Cup

SKU: festo-esv-20-eu-191024

Browse all parts
Festo - ESV-20-EU-191024 - Vacuum Suction Cup

€19.45€16.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€19.45

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
rund extra-tief
Food Compatibility
See expanded material information
Operating Pressure
-0,095 to 0
Suction Cup Volume
0,722
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
20
Min. Workpiece Radius (mm)
30
Nominal Operating Pressure
-0,07
Holding Force For Nominal Operating Pressure (N)
17,0
EAN
4052568043322
Manufacturer
Festo
