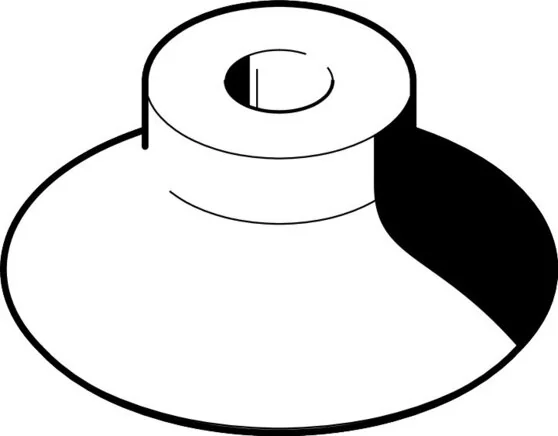

Festo - ESV-40-EN-191031 - Vacuum Suction Cup

SKU: festo-esv-40-en-191031

Browse all parts
Festo - ESV-40-EN-191031 - Vacuum Suction Cup

€15.90€13.59 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€15.90

Brand
Festo
Colour
black
Material Note
RoHs compliant
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
rund extra-tief
Food Compatibility
See expanded material information
Operating Pressure
-0,095 to 0
Suction Cup Volume
3,733
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 70
Suction Cup Diameter (mm)
40
Min. Workpiece Radius (mm)
80
Nominal Operating Pressure
-0,07
Holding Force For Nominal Operating Pressure (N)
67,6
EAN
4052568043391
Manufacturer
Festo
