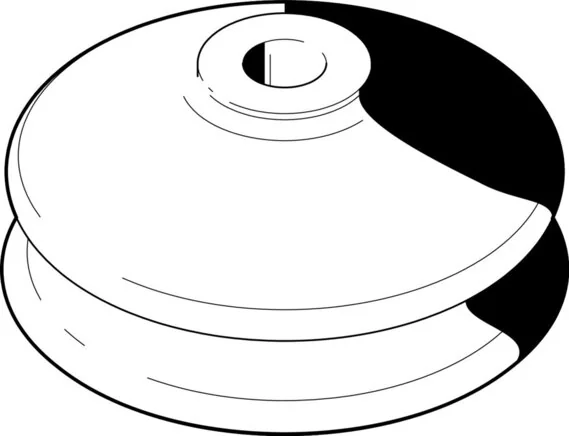

Festo - ESV-80-BT-526008 - Vacuum Suction Cup

SKU: festo-esv-80-bt-526008

Browse all parts
Festo - ESV-80-BT-526008 - Vacuum Suction Cup

€77.92€66.60 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€77.92

Brand
Festo
Colour
Red brown
Material Note
RoHs compliant
Fastening Type
Via vacuum connection
Shore Hardness
72 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Operating Pressure
-0,95 to 0
Suction Cup Volume
59,1
Construction Set Up
Folding bellows
Installation Position
arbitrary
Suction Cups Material
Vulkollan
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 80
Suction Cup Diameter (mm)
80
Min. Workpiece Radius (mm)
100
Nominal Operating Pressure
-0,7
Pull-off Force At 70% Vacuum (N)
237
High Balance Suction Cup Fixation (mm)
10,5
Shear Force For Nominal Operating Pressure (N)
102
Holding Force For Nominal Operating Pressure (N)
237,0
EAN
4052568083342
Manufacturer
Festo
