Festo - FBS-M12-5GS-PG9-175380 - Plug

SKU: festo-fbs-m12-5gs-pg9-175380

Browse all parts

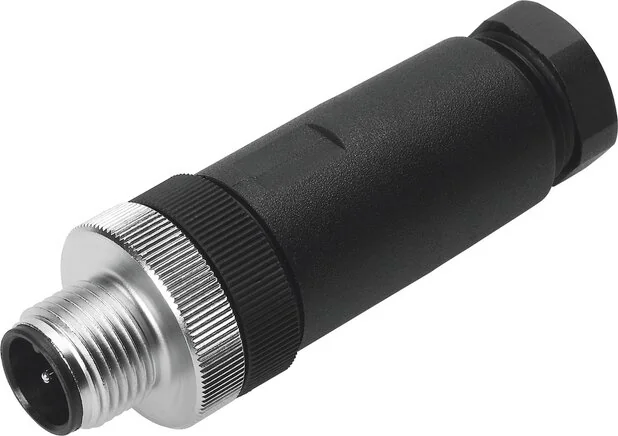

Festo - FBS-M12-5GS-PG9-175380 - Plug

€43.52€37.20 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€43.52

Brand
Festo
Cable Gland
Pg9
Fastening Type
With Threaded sleeve
Housing Colour
black
Housing Material
PA reinforced
Based On Standard
EN 61076-2-101, EN 61984
Protection Category
IP67
Locking Nut Material
nickel-plated, Zinc pressure cast
Material Information
RoHs compliant
Electrical Connection
M12x1, 5-pin, Wiring diagram Form A acc. to EN 175301-803, Straight plug / screw clamp
Installation Position
arbitrary
Plug Contacts Material
brass, Nickel and gold plated
Degree Of Contamination
3
Ambient Temperature (°C)
-40 to 85
Surge Voltage Strength (kV)
1,5
Permitted Cable Diameter (mm)
6 to 8
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range AC (V)
<= 60 V
Operating Voltage Range DC (V)
<= 60 V
Connection Cross-section (mm²)
0,75
Current Carrying Capacity At 40°C (A)
4
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568075026
Manufacturer
Festo
