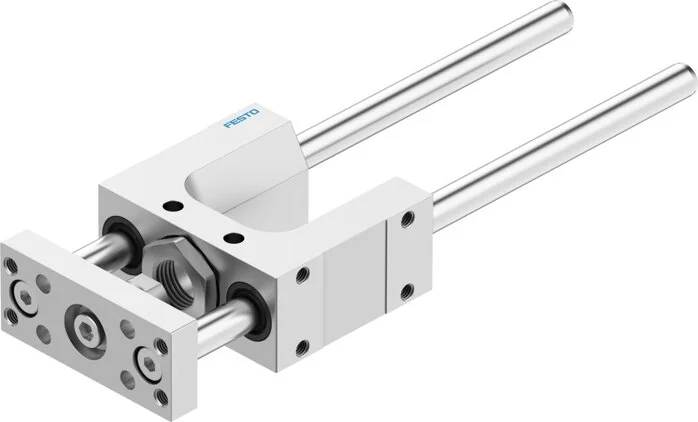

Festo - FEN-12/16-100-KF-8204027 - Guide Unit

SKU: festo-fen-12-16-100-kf-8204027

Browse all parts
Festo - FEN-12/16-100-KF-8204027 - Guide Unit

€839.90€717.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€839.90

Brand
Festo
Size
Dez 16
Guide
ball guide
Stroke (mm)
100
Material Note
RoHs compliant
Fastening Type
with female thread
Moving Mass (g)
281
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Force Fy (N)
520
Max. Force Fz (N)
520
Pushing Force (N)
15
Construction Set Up
Guide
Max. Torque Mx (Nm)
12
Max. Torque My (Nm)
7
Max. Torque Mz (Nm)
7
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
830
Max. Force Fz Static (N)
830
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
20
Max. Torque My Static (Nm)
12
Max. Torque Mz Static (Nm)
12
EAN
4052568653668
Manufacturer
Festo
