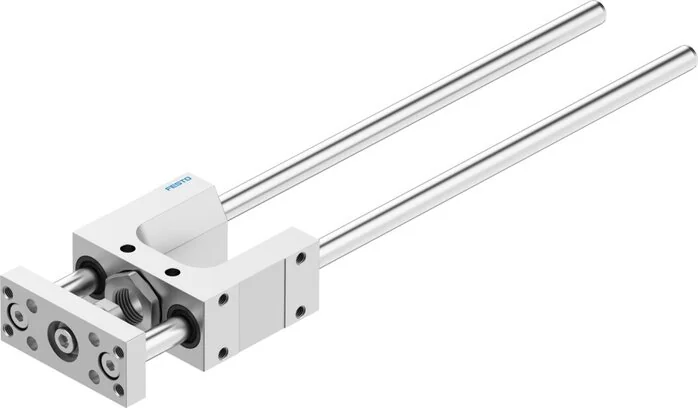

Festo - FEN-12/16-200-KF-8204030 - Guide Unit

SKU: festo-fen-12-16-200-kf-8204030

Browse all parts
Festo - FEN-12/16-200-KF-8204030 - Guide Unit

€865.80€740.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€865.80

Brand
Festo
Size
Dez 16
Guide
ball guide
Stroke (mm)
200
Material Note
RoHs compliant
Fastening Type
with female thread
Moving Mass (g)
401
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Force Fy (N)
520
Max. Force Fz (N)
520
Pushing Force (N)
15
Construction Set Up
Guide
Max. Torque Mx (Nm)
12
Max. Torque My (Nm)
7
Max. Torque Mz (Nm)
7
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
830
Max. Force Fz Static (N)
830
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
20
Max. Torque My Static (Nm)
12
Max. Torque Mz Static (Nm)
12
EAN
4052568653699
Manufacturer
Festo
