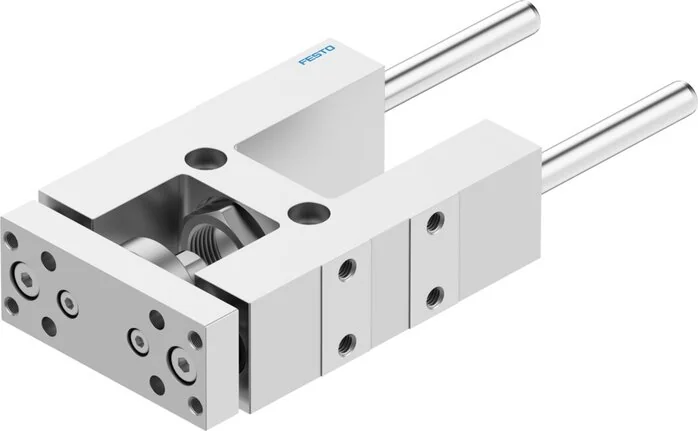

Festo - FEN-20-50-KF-8204031 - Guide Unit

SKU: festo-fen-20-50-kf-8204031

Browse all parts
Festo - FEN-20-50-KF-8204031 - Guide Unit

€870.98€744.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€870.98

Brand
Festo
Size
20
Guide
ball guide
Stroke (mm)
50
Material Note
RoHs compliant
Fastening Type
with female thread
Moving Mass (g)
329
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Force Fy (N)
520
Max. Force Fz (N)
520
Pushing Force (N)
15
Construction Set Up
Guide
Max. Torque Mx (Nm)
15
Max. Torque My (Nm)
20
Max. Torque Mz (Nm)
20
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
830
Max. Force Fz Static (N)
830
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
24
Max. Torque My Static (Nm)
31
Max. Torque Mz Static (Nm)
31
EAN
4052568653903
Manufacturer
Festo
