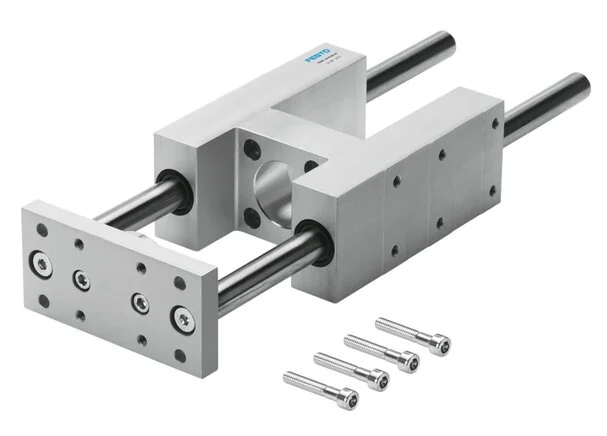

Festo - FENG-100-100-KF-34530 - Guide Unit

SKU: festo-feng-100-100-kf-34530

Browse all parts
Festo - FENG-100-100-KF-34530 - Guide Unit

€2,178.28€1,861.78 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,178.28

Brand
Festo
Size
100
Guide
ball guide
Stroke (mm)
100
Material Note
RoHs compliant
Fastening Type
with female thread
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Force Fy (N)
2300
Max. Force Fz (N)
2300
Pushing Force (N)
40
Construction Set Up
Guide
Max. Torque Mx (Nm)
198
Max. Torque My (Nm)
197
Max. Torque Mz (Nm)
197
Yoke Plate Material
Quenched and tempered steel
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
3.120
Max. Force Fz Static (N)
3.120
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
268
Max. Torque My Static (Nm)
267
Max. Torque Mz Static (Nm)
267
EAN
4052568115432
Manufacturer
Festo
