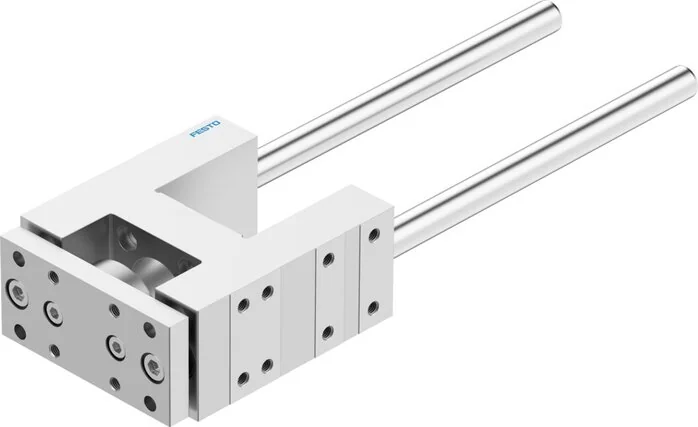

Festo - FENG-50-100-KF-34507 - Guide Unit

SKU: festo-feng-50-100-kf-34507

Browse all parts
Festo - FENG-50-100-KF-34507 - Guide Unit

€1,194.31€1,020.78 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,194.31

Brand
Festo
Size
50
Guide
ball guide
Stroke (mm)
100
Material Note
RoHs compliant
Fastening Type
with female thread
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Force Fy (N)
1260
Max. Force Fz (N)
1260
Pushing Force (N)
15
Construction Set Up
Guide
Max. Torque Mx (Nm)
65
Max. Torque My (Nm)
70
Max. Torque Mz (Nm)
70
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
1.600
Max. Force Fz Static (N)
1.600
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
83
Max. Torque My Static (Nm)
89
Max. Torque Mz Static (Nm)
89
EAN
4052568009922
Manufacturer
Festo
