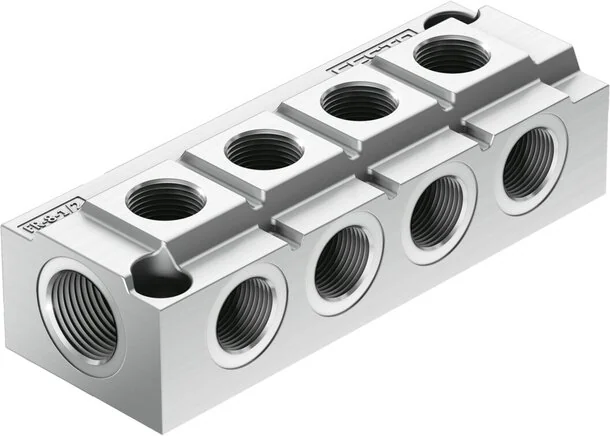

Festo - FR-8-1/2-6411 - Manifold Block

SKU: festo-fr-8-1-2-6411

Browse all parts
Festo - FR-8-1/2-6411 - Manifold Block

€187.96€160.65 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€187.96

Brand
Festo
Material Note
RoHs compliant
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Number Of Outlets
8
Nominal Width (mm)
18,6
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
female thread G3/4
Pneumatic Connection 2
female thread G1/2
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
0 - No corrosion stressing
Nominal Tightening Torque (Nm)
35,0
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Operating Pressure Complete Temperature Range (bar)
0 to 16
EAN
4052568001216
Manufacturer
Festo
