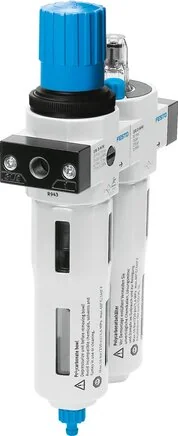

Festo - FRC-3/4-D-O-MAXI-A-NPT-173879 - Service Unit

SKU: festo-frc-3-4-d-o-maxi-a-npt-173879

Browse all parts
Festo - FRC-3/4-D-O-MAXI-A-NPT-173879 - Service Unit

€881.58€753.49 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€881.58

Brand
Festo
Size
Maxi
Fastening Type
With mounting bracket
Clamps Material
PC
Filter Porosity
40
Condensate Drain
Fully automatic
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Installation Position
vertical
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
3/4 NPT
Pneumatic Connection 2
3/4 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,2 to 1,2
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:8:-]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,04
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
8300
EAN
4052568315498
Manufacturer
Festo
