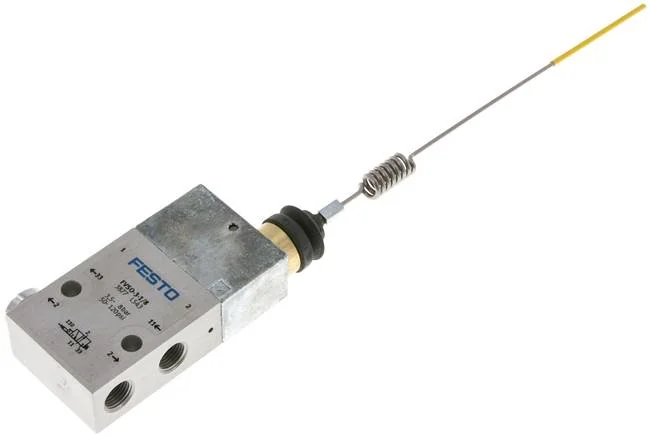

Festo - FVSO-3-1/8-3877 - Spring Rod Valve

SKU: festo-fvso-3-1-8-3877

Festo - FVSO-3-1/8-3877 - Spring Rod Valve

€341.49€291.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€341.49

Brand
Festo
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Mechanical
Control Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 open monostable
Exhaust Function
Can be throttled
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
3,5
Construction Set Up
Plate seat
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,35 to 0,8
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
175
EAN
4052568110406
Manufacturer
Festo
