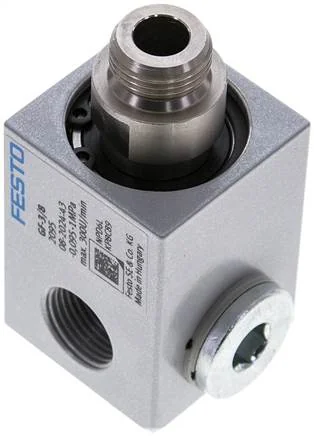

Festo - GF-3/8-2095 - Rotary Manifold

SKU: festo-gf-3-8-2095

Festo - GF-3/8-2095 - Rotary Manifold

€198.27€169.46 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€198.27

Brand
Festo
Max. Speed
300
Material Note
RoHs compliant
Shaft Material
High-alloyed steel
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
15
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
female thread G3/8
Medium Temperature (°C)
-10 to 60
Normal Flow 1-2.1 (6->0)
4.641
Ambient Temperature (°C)
-10 to 60
Normal Nominal Flow 1.1-2.1
2.969
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Flow Rate 1-2.X Open (6->0)
4.647
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568110116
Manufacturer
Festo
