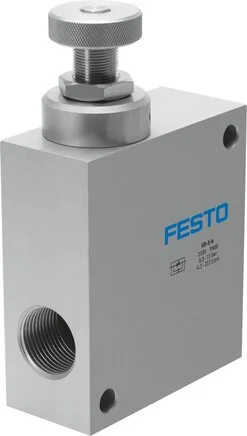

Festo - GR-3/4-2103 - Throttle Check Valve

SKU: festo-gr-3-4-2103

Festo - GR-3/4-2103 - Throttle Check Valve

€563.10€481.28 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€563.10

Brand
Festo
Material Note
RoHs compliant
Fastening Type
With throughway bores
Valve Function
Throttle blowback function
Setting Element
knurled screw
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0.3 to 15
Ambient Temperature (°C)
-10 to 60
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
3300
Normal Nominal Flow In Check Valve Direction
4800
EAN
4052568000080
Manufacturer
Festo
