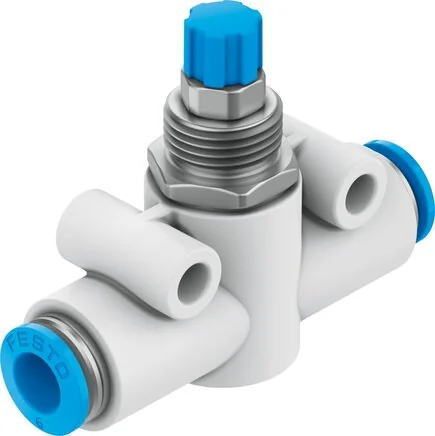

Festo - GR-QS-6-193969 - Throttle Check Valve

SKU: festo-gr-qs-6-193969

Festo - GR-QS-6-193969 - Throttle Check Valve

€35.32€30.19 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€35.32

Brand
Festo
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Valve Function
Throttle blowback function
Setting Element
knurled screw
Sleeve Material
POM
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
Knurled Head Material
PA reinforced
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
QS-6
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0.2 to 10
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
High-alloyed steel
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
245
Normal Nominal Flow In Check Valve Direction
430
EAN
4052568015190
Manufacturer
Festo
