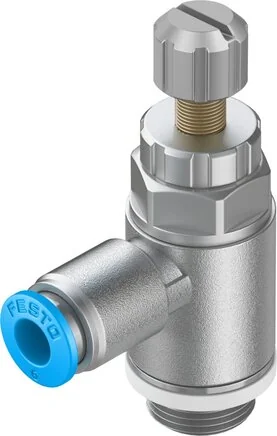

Festo - GRLA-3/8-QS-6-RS-D-534341 - Throttle Check Valve

SKU: festo-grla-3-8-qs-6-rs-d-534341

Browse all parts
Festo - GRLA-3/8-QS-6-RS-D-534341 - Throttle Check Valve

€42.56€36.38 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€42.56

Brand
Festo
Material Note
RoHs compliant
Fastening Type
with male thread
Seals Material
NBR
Valve Function
Throttle blowback function
Setting Element
knurled screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
eloxiert
Installation Position
arbitrary
Knurled Head Material
eloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
G3/8
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (bar)
0.2 to 10
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
40
Regulation Screw Material
High-alloyed stainless steels
Swivel Connection Material
Zinc pressure cast
Nominal Tightening Torque (Nm)
10
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
495
Normal Nominal Flow In Check Valve Direction
320 to 495
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
840 to 890
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
740
EAN
4052568086824
Manufacturer
Festo
